ALL BLUE - Model RP-M324 -Smart Flow Mercury Analyzer Filter

SHARE

The standard RP-M324 filter was designed to neutralize acid gases produced in the furnace to protect the pump and to scrub any mercury from the exhaust gases. This original factory filter performs its job adequately, but has some drawbacks.

Most popular related searches
acid gas
portable analyzer
mercury analyzer
hose pumping
hose pump
furnace
flow analyzer
plastic filter media
media filter
  • Replacement filters are expensive at ~ $500 and are recommended to be replaced annually.
  • Filter is "clunky" and top-heavy and uses a vinyl/lead ring to hold it upright. Components of a portable analyzer should not be made of lead if possible!
  • Filter is assembled of off-the-shelf items designed for other uses
  • Extreme tubing angles to filter can cause kinks and block flow
  • Something costing this much should not be held together with plastic cable ties!
  • Filter is prone to clogging
  • Filter has high flow resistance
ALL BLUE has designed the Smart Flow filter to perform better and offers it at a lower price
  • The Smart Flow filter was designed from scratch for this application
  • It contains the same filter medias as the original factory filter, but contains >50% more active sights for each media so it will last >50% longer
  • Filter is trim, attractive, and replaces the original in seconds
  • Due to its unique design, it is stable on its own without a lead weight
  • The Smart Flow filter allows the exhaust gases to pass through with less resistance and is designed to prevent clogging
  • The design allows hose connections to be kink-free
  • 2-piece design with swivel joint is stable in use but takes up minimal space in travel case

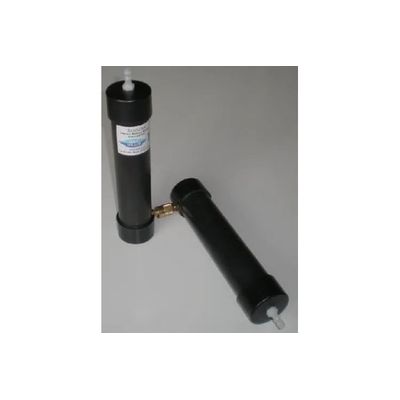

The most convenient way to configure the filter is with the inlet side horizontal and the outlet side vertical. This makes for an easy connection to the furnace hose and the pump hose and the filter is stable in this position. However, the 2 halves can be rotated at the swivel to configure it in other ways depending on bench space and other constraints.
