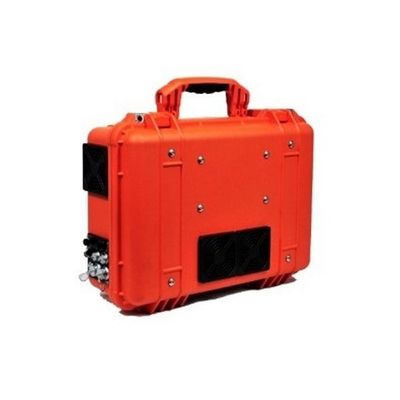

HealthyPhoton - Model HT8800 Series -All-in-one Portable GHG Analyzers

As global climate change intensifies, the impact of greenhouse gas emissions and variations on the environment and climate becomes increasingly evident. In order to better monitor the composition and concentration of greenhouse gases in the atmosphere to support climate research and environmental protection measures, HealthyPhoton Technology Co., Ltd. has introduced the HT8800 Series All-in-one Portable GHG Analyzers.

HT8800 Series All-in-one Portable GHG Analyzers (carbon dioxide, methane, nitrous oxide, water vapor) is independently developed, produced, and sold by HealthyPhoton Technology Co., Ltd., representing a domestically innovative product. This series of instruments is designed based on quantum cascade laser technology, utilizing the "fingerprint" absorption spectra of gas molecules in the mid-infrared region. It uses semiconductor quantum cascade lasers (QCL) as light sources, allowing the laser to pass through an original mid-infrared enhanced optical cavity. The transmitted light is received by a mid-infrared photodetector, and the transmitted spectra are extracted and analyzed. This process accurately calculates the concentrations of the target greenhouse gases, enabling more precise, timely, and scientifically accurate measurements of target greenhouse gas molecules.

HT8800 Series All-in-one Portable GHG Analyzers achieves rapid and high-precision greenhouse gas measurements within a portable instrument case. It employs independent strong absorption spectral lines, eliminating cross-interference from other gas molecules. This series of gas analyzers can be powered by solar energy or lithium batteries, enabling fixed-point or mobile continuous observation of greenhouse gas concentrations.

Multi-component analysis technology: The HT8800 series uses multi-channel gas analysis technology, allowing simultaneous measurement of multiple greenhouse gases. Spectral absorption technology: The instrument uses spectral absorption principles, where a laser beam at specific wavelengths interacts with gas molecules to achieve non-contact concentration measurements. Intelligent calibration algorithm: Built-in intelligent calibration algorithms accurately compensate for sensor drift, ensuring the reliability and accuracy of measurement results.

• Multi-component: Utilizes the mid-infrared band, independent strong absorption spectral lines, with no cross-interference for more accurate measurements.
• Portability: Designed with a high-strength ABS material casing, waterproof, durable, and easy to carry, achieving rapid and high-precision measurements within the instrument case.
• Reliability: Utilizes the strongest absorption signals of gas molecules, eliminating the need for an extremely long optical cavity, resulting in a more stable testing cavity and more reliable data.
• Flexibility: Can be used for fixed-point or vehicle-mounted continuous automatic detection, breaking through environmental detection limitations.
• Low power consumption: Main unit power consumption is less than 100W, and it can be powered by solar energy or batteries for continuous uninterrupted detection.
• Independently developed in China, rapid nationwide response, worry-free after-sales support.

• HT8800 Series All-in-one Portable GHG Analyzers is widely used in the following fields:
• Environmental Monitoring: Used for urban air quality monitoring, industrial gas emission detection, and more.
• Climate Research: Utilized to collect greenhouse gas concentration data required for climate model research.
• Agriculture and Ecology: Employed to monitor greenhouse gas emissions in farmland and gas variations in ecosystems.
• Scientific Research and Analysis: Serves as experimental equipment for research and educational activities.
