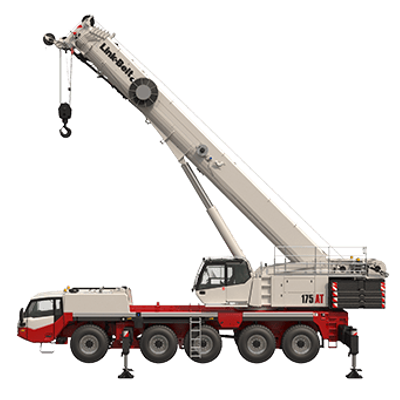

Link-Belt - Model 175|AT -All Terrain Crane
FromLink-Belt Cranes

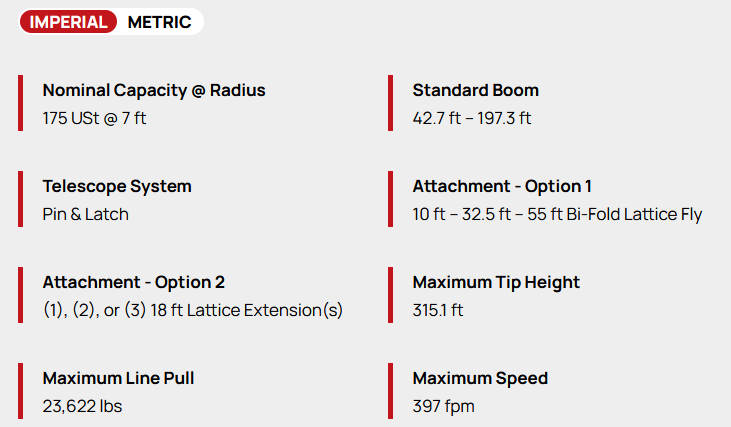

Greaseless 42.7 ft – 197.3 ft pin and latch six-section boom. Three-piece (10 ft – 32.5 ft – 55 ft) fly with integrated heavy-lift section: manual OR hydraulic offset options. One, two, or three available lattice inserts to achieve max tip height of 315.1 ft.
Most popular related searches
crane operation
temperature monitoring
wireless pressure monitoring
remote temperature monitoring
pressure monitoring
- Full three-piece fly is stowable on the machine, and no capacity deducts for stowed attachment
- Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
- Modular counterweight designed for maximizing transport efficiency — two overflow loads for max counterweights
- Cummins QSX15 Engine: T4F/Stage V Compliant Off-Highway 548 HP Engine
- ZF TraXon (no clutch pedal) Manual Transmission
- Link-Belt Pulse 2.0 total crane operating system, including 81-position V-CALC-individual outrigger extension system
- NEW: SmartStack counterweight monitoring system
- Link-Belt Vision Package & full LED lighting package – Standard
- All new carrier cab: Dual-occupant, European-style AT cab
- TPMS: Wireless Tire Pressure and Temperature Monitoring
- Flat deck design — maintains four points of access regardless of upper position
