Eldan - Model M10 -Alligator Shear (Cable)
The cutting power of the Eldan Alligator Shear is 40 ton making it suitable for more demanding materials. The machine is operated by a foot pedal, making it easy to operate. Adjustable gap opening to optimize the cutting. Turnable knifes, i.e. 4 cutting edges, maximize time between knife changes.
Most popular related searches

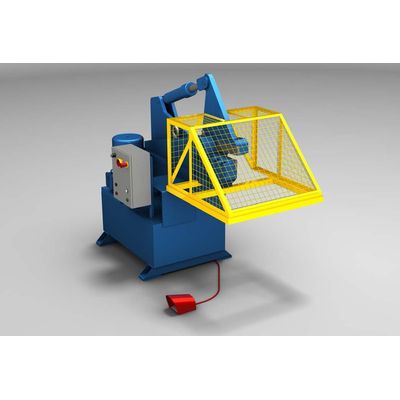

Eldan Alligator Shear is a heavy duty hydraulic metal and cable shear. It is designed to cut e.g.:
- Metal bars and rods
- Light and heavy electrical cables
- Coils and bundles of insulated and non-insulated wires and other types of items
- Scrap from bare metals or mixed with plastic
- Cutting power is 40 ton making it suitable for more demanding materials
- The machine is operated by a foot pedal, making it easy to operate
- Adjustable gap opening to optimize the cutting
- Turnable knifes, i.e. 4 cutting edges, maximize time between knife changes
- Gap height: Max. 160/50 mm (adjustable)
- Knive length: 250 mm (turnable, 4 cutting edges)
- Motor: 11 kW
- Cutting power: 40 000 kg
- Weight: Approx. 950 kg (excl. hydraulic oil)

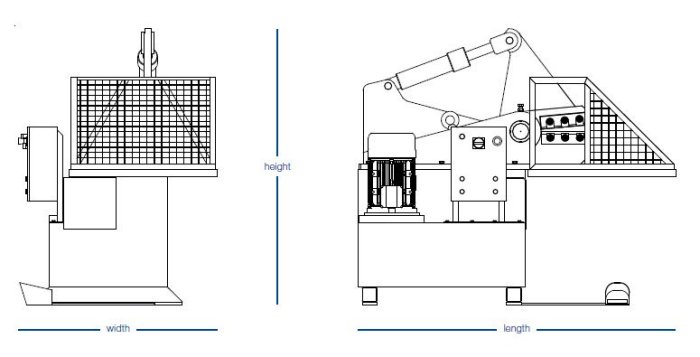

- Length x width x height: 1715 x 1076 x 1501 mm
- Hydraulic oil: 170 l
Standard voltage: 3 ph, 400, 50 Hz – for other voltages please contact our sales department
