Walker Filtration Ltd

- Coalescing Compressed Air Filters

From

0

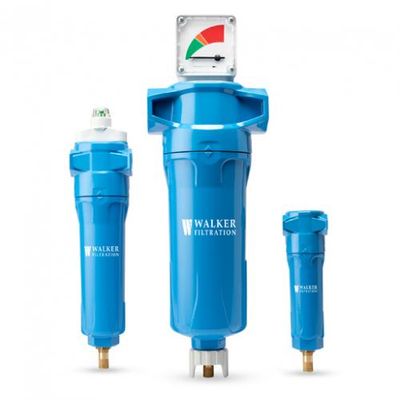

Walker Filtration’s New Alpha Series of Coalescing Compressed Air Filters feature a redesigned housing and a step change in element performance– making it one of the most energy efficient filter housings available on the market today. Offered in a range of 18 models with connection sizes from 1/8” to 3” Rp (BSP Parallel), Rc (BSP Taper) and NPT. The New Alpha has a maximum operating temperature of 120˚C (248 ˚F), an improved maximum operating pressure of up to 20.7 barg (300 psig)*, and flow capacities up to 1500 SCFM (2550 Nm³/hr).

Designed with flow-optimisation in mind, the New Alpha Series features an all new advanced filter head design which, when combined with the New Alpha filter element significantly improves air flow and performance - increasing the energy efficiency within your Compressed Air system.

Available in five filtration grades (X25 - 25 micron, X5 - 5 micron, X1 - 1 micron, XA  – 0.01 micron & AC - Activated Carbon), New Alpha elements deliver significant energy savings with guaranteed class leading performance with XA and X1 grades achieving a saturated differential pressure of < 125mbar; providing lower lifetime costs and the highest of air quality.

The New Alpha Series of Compressed Air Coalescing filters are tested and validated to ISO 12500-1: 2007 guaranteeing the highest levels of air quality.

* 20.7 bar range (300 psig) at 120˚C (248 ˚F) available when supplied with a manual drain valve - Please contact our sales team to discuss your specific requirements

  • Food & Beverage
  • Chemical
  • Dental
  • Medical
  • Electronics
  • Emissions Monitoring
  • Instrumentation
  • Laboratories
  • Laser Cutting
  • Manufacturing
  • Military
  • Oil & Gas
  • Paint Applications
  • Pharmaceutical Manufacturing
  • Pneumatic Conveying
  • Cleaning (Industrial Cleaning)
  • Aluminium/Steel Plants
  • Lifting Equipment
  • Heating & Cooling
  • Power Generation
  • Railway
