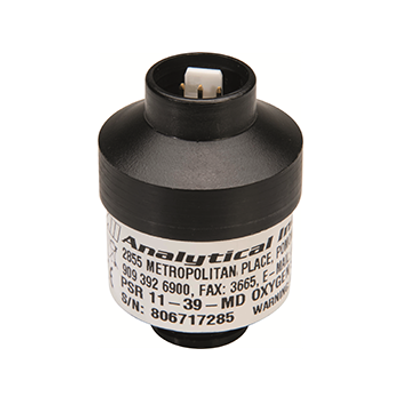

AII1 Analytical - Model PSR-11-39-MD -Alternative Oxygen Sensor
Analytical Industries Inc. (Aii) designs and manufactures galvanic oxygen sensors for both recreational and commercial divers. Each sensor undergoes thorough quality assurance and individual testing to guarantee its reliability and stability. We provide pressure and test data with every sensor, including end-of-line testing for stability at ambient conditions and 100% oxygen, as well as a 30" water column pressure test. Aii ship only "fresh" diving sensors directly from our factory in California, and are typically available for shipment within 24 hours. Aii scuba and rebreather diving sensors are manufactured in the USA.
Most popular related searches
oxygen sensor
commercial diver
water pressure test
oxygen sensor system
sensor system
water testing
industrial sensor
well water
Oxygen sensor for use in:
- Kiss Rebreather
- Oxy Spy, CCR-2000
- Olympic Submarine Technologies CCR-2000
- Conchran Lifeguard
- Inspiration Rebreather (original configuration)
- HydroSpace Explorer
- DiveSoft- Dive Rite O2ptima (R22s w/ 3pin molex),
- Poseidon Se7en & Discovery VI
- Hollis Prism 2 & Explorer MK2
- Hammerhead Rebreather
Direct replacement oxygen sensor for:
- City Technology MOX-1 Sensor
- Maxtec MAX-12 Sensor
- Teledyne R-22D Sensor
- Teledyne R-24 Sensor
- Signal Output: 8.5-14 mV
- Measuring Range: 0-100% O2
- Response Time: 6 seconds to reach 90% of the final value
- Accuracy: ±1% Full Scale (FS), ±5% FS over the operating range
- Humidity Range: Non-condensing, 0-99% RH
- Electrical Connections: 3 Pin Molex
- Measuring Range: 0-100%
- Accuracy : +/-2% of Full Scale
- Signal Output : 8.5-14 mV
- Linearity: +/-2% of Full Scale
- Response T90: 6 sec
- Temperature Coefficient: Compensated
- Operating Temp: 0 to 45°C
- Recommended Storage: 0 to 25°C
- Qualified at: 1.8 ATA
- Shelf Life : 6 months
- Humidity Non-condensing: 0-99% RH
- Expected Life : 42 months
- Warranty : 12 months
- Electrical Conn: 3 Pin Molex
