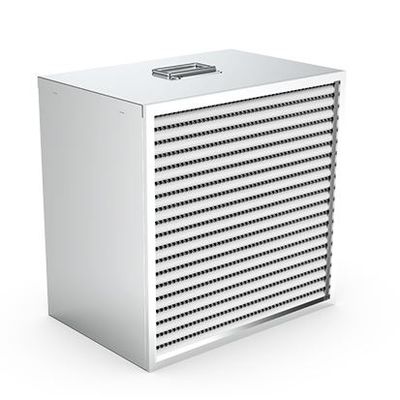

Megaunity - Model P Series -Aluminum Separator Filter

Types of Filter Cartridges:

• P Series Aluminum Separator Filter Suitable for high-concentration conditions (>25 mg/m3) for primary purification, can be used for the recovery and reuse of cutting fluids.
• S Series Aluminum Separator Filter: Can be used independently in low-concentration conditions (
• H Series High-Efficiency Filter Made from H13-grade filtration materials, suitable for capturing particles below 0.3 micrometers. It is used in high-grade purification equipment and end-of-line filtration systems, achieving a filtration efficiency of over 99.99% (@0.3 micrometers). The purified air can be discharged directly into the workshop.

Filter Cartridge Selection:

• S Series can be used independently for water-based cutting fluid or low-concentration cutting oil conditions with an inlet concentration below 20 mg/m3.
• For medium-concentration cutting oil conditions with an inlet concentration of
•  In situations where there are stricter requirements for internal discharge or outlet emissions standards, the H Series high-efficiency filter can be added to achieve nearly zero emissions.

• Low operating resistance: 450-550 Pa
• High purification efficiency: 95% @ 1um
• Strong self-cleaning capability, no need for downtime to discharge oi
• Saves fuel consumption and enables the recycling of cutting oil
• Extended lifespan, up to 2-3 times that of regular filter cartridges
