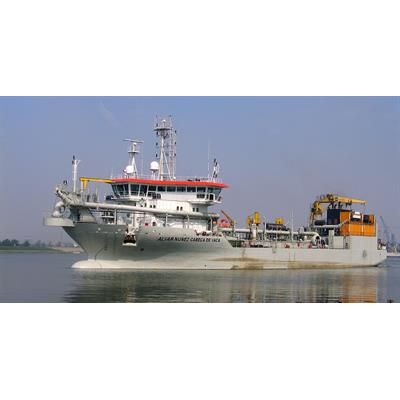

Alvar Nuñez - Trailing Suction Hopper Dredger
Alvar Nuñez Cabeza de Vaca and Sebastiano Caboto are dredgers specifically designed for operation in shallow waters with hopper capacity of 3 400 m3 and a loaded draught of only 5 meters. The new hopper dredgers are under construction and will be delivered in 2011 by Tianjin Xinhe Shipyard in the Peoples Republic of China.
Most popular related searches
hopper dredge
trailing suction hopper dredge
trailing suction hopper
suction hopper dredge
dredge
rudder propeller
tranverse thruster
dredging
suction dredging
ballast water
Class
BUREAU VERITAS: I HULLMACH AUT-UMS, Hopper Dredger, Unrestricted navigation.
- Hopper capacity 3 400 m3
- Deadweight at dredging draught 4 800 tonnes
- Length over all 93.25 m
- Length between PP 81.00 m
- Breadth mld 19.80 m
- Depth mld 7.00 m
- Deadweight at dredging mark 3 400 dwt
- Dredging draught 5.00 m
- Hopper capacity 3 400 m3
- FO tanks 400 m3
- FW tanks 100 m3
- Water ballast (fore peak) 250 m3
- Main generators 3 x 1 350 kW
- Rudder propellers 2 sets
- Dredgepump drive 2 000 kW
- Bow thruster 350 kW
- Deck crane fore 10 kN
- Deck crane aft 180 kN
- Accomodation 14 pers
- Speed (mean draught 4.50 m) 10.0 knots
