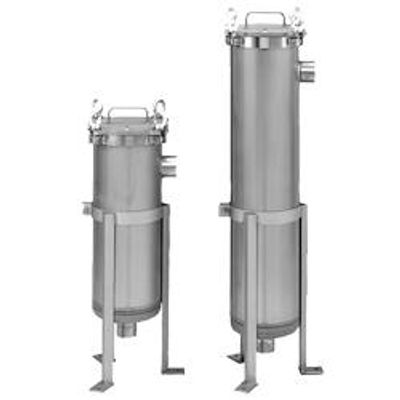

Amafilter® - Model AFE -Bag Filter Housing

FEATURES
Easy to operate and to access.• Effective interior sealing.
• The cover closure has hinged eye bolts and eye nuts in
galvanised steel. Stainless steel bolts and nuts are
optional.
• Flat cover with handle.
• O-ring sealing: standard Buna N. Other materials available
on demand.
• Durable stainless steel metal mesh support basket for low
flow resistance and maximum utilisation of entire surface
area.
• Slightly conical support basket for easy filter bag removal.
• Liquid displacement cover: leak proof for complete seal
when opening the filter.
• Liquid displacer units are available to further reduce the
dead volume inside the filter bags.
• Perfect sealing between unfiltered liquid and filtered liquid
is achieved by a spring-loaded hold-down device onto the
filter bag and support basket. The filter bag seals with a
feltcovered snap- collar ring or plastic seal which tightly fits
into the support basket.
• Height-adjustable legs.
• The maximum temperature for these housings is 90 °C.
• Height adjustable legs.
• Liquid displacement cover design: no liquid runs over the
side when opening the filter. Safe and clean operation.
