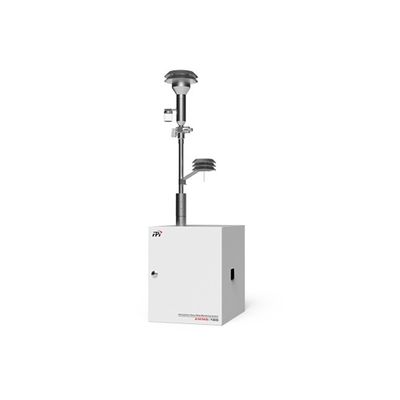

FPI - Model AMMS-100 XRF -Ambient Metal Analyzer
The system integrates X-ray fluorescence for metal analysis up to 30 elements and a beta-ray attenuation model for particulate mass monitoring. But module will be using the same sample moving sequentially across the detector and would be significantly effective in industry emission tracing.
Most popular related searches
XRF monitoring
particulate monitoring
particulate matter
ambient particulate
heavy metals
heavy metals monitoring
fluorescence monitoring
analysis system
toxic metal
air particulate
- Measuring 30 toxic metals simultaneously;
- Magnitude of detection limit 0.01-0.1 ng/m3 level;
- Nondestructive test that the membrane sample can be preserved;
- Associate measurements with the time of day or meteorological conditions make particular source tracing possible;
- Continuous monitoring results in a large database that can conduct source modeling;
- No consumable except filter tape replacement, no laboratory analysis, unattended online monitoring results in cost reduction and time-saving;
- Measurement Method of Particulate Matter: Beta-Ray attenuation
- Measurement Method of Heavy Metal Element: X-Ray fluorescence
- Measurement Range of Particulate Matter: 0~1,2,5,10mg/m3
- Measurement Range of Heavy Metal Element: 0~100μg/m3
- Detection Limit of Particulate Matter: 5μg/m3
- Repeatability of Particulate Matter: Reproducibility of calibration filter<2%
- Sampling Flow Rate: 4~20L/min (Adjustable)
- Linearity: ±1%F.S.
- Filter Replacement Lifetime: 1~3months
- Analyzing Time: 10~300min (Adjustable)
- Operating Temperature: -30~50°C
- Output: RS232, RS485, Ethernet, GPRS
- Power Supply: 220V AC, 50Hz
