SEVEN - Model 3S-AT-PT1000-I -Ambient Temperature Sensor-PT1000 with 4-20 mA Output

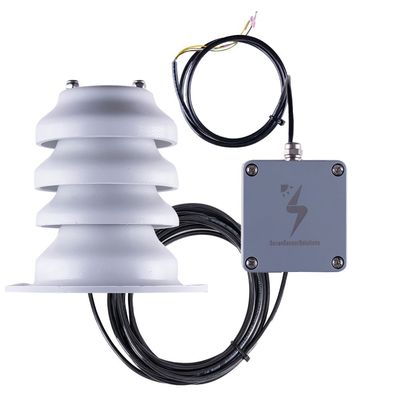

Ambient Temperature Sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius (°C) by using a PT1000 probe. In order to communicate via 4-20mA, a transducer is used to convert PT000 to the required Output signal. This Ambient Temperature Sensor Model is compatible with all Dataloggers, Gateways, and PLCs with 4-20 mA input port. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield with four aspirated plates that allow the air to pass freely.Most popular related searches
ambient temperature sensor
temperature sensor
ambient temperature monitoring
radiation shielding
air temperature sensor
temperature monitoring
data logger
air monitoring
- Item Code: 3S-AT-PT1000-I
- Sensor Type: PT1000
- Measuring Range: -40°C to +85°C
- Accuracy: ± 0.1°C
- Resolution: 0.1°C
- Data Output: Analog 4-20 mA
- Power Supply: 12 to 30 V DC
- Power Consumption: 30 mA @ 24 V DC
- Electrical Connection: 3 m LIYYC11Y PUR Cable, UV and Weather Resistant
- Operating Temperature Range: -40°C to +85°C
- Box Dimensions: 64 x 68 x 35 mm (W x L x H)
- Shield Dimensions: Ø 105 x 100 mm
- Weight: 206 gr
- IP Rating: IP 67
- Box Material: ABS
- Sensor Housing Material: Stainless Steel Tube
- Shield Material: ABS
- Mounting Method: Ground Mounting
- Standard: Class A according to IEC 60751:2022
