SEVEN - Model 3S-AT-PT1000-MB -Ambient Temperature Sensor-PT1000 with Modbus Output

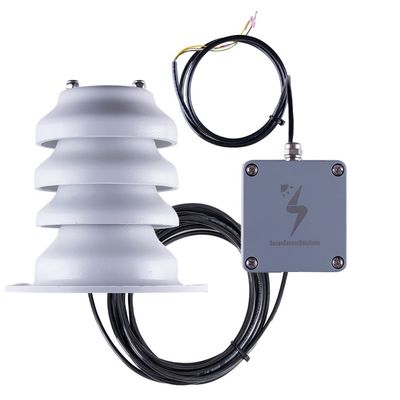

Ambient Temperature Sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius (°C) by using by using a PT1000 probe. This Ambient Temperature Sensor Model is compatible with all Dataloggers and PLCs with RS485 input port. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield with four aspirated plates that allow the air to pass freely.Most popular related searches
ambient temperature sensor
temperature sensor
radiation shielding
ambient temperature monitoring
air temperature sensor
temperature monitoring
data logger
air monitoring
- Item Code: 3S-AT-PT1000-MB
- Sensor Type: PT1000
- Measuring Range: -40°C to +85°C
- Accuracy: ± 0.1°C
- Resolution: 0.1°C
- Data Output: RS485 up to 38400 Baud
- Communication Protocol: Modbus RTU
- Power Supply: 12 to 30 V DC
- Power Consumption: 15 mA @ 24 V DC
- Electrical Connection: 3 m LIYYC11Y PUR Cable, UV and Weather Resistant
- Operating Temperature Range: -40°C to +85°C
- Box Dimensions: 64 x 68 x 35 mm (W x L x H)
- Shield Dimensions: Ø 105 x 100 mm
- Weight: 206 gr
- IP Rating: IP 67
- Box Material: ABS
- Sensor Housing Material: Stainless Steel Tube
- Shield Material: ABS
- Mounting Method: Ground Mounting
- Standard: Class A according to IEC 60751:2022
