Advanced Micro Instruments, Inc. (AMI)

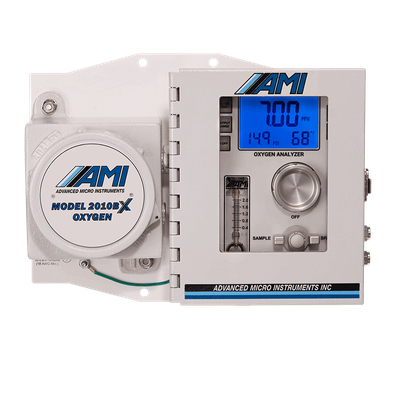

- Model 2010BX - Permanent Mount Trace Oxygen Analyzer

From

0

The MODEL 2010BX is AMI’s most advanced Trace Oxygen Analyzer. This next generation unit combines patented technologies and superior design to deliver unsurpassed performance and reliability while keeping costs low. The MODEL 2010BX is the #1 choice among engineers and measurement technicians.

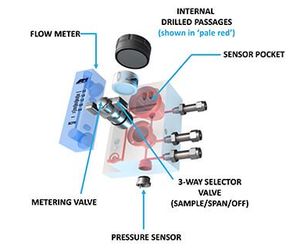

Transparent View of ELIMINATOR CELL BLOCK™

Eliminator Cell Block for a Leak-Free Design
The patented ELIMINATOR CELL BLOCK™ provides a unique, compact sample system approach and a flow-efficient sensor pocket machined into a solid metallic block. Precision cross drilled intersecting gas passages eliminate the need for long lengths of tubing and leak-prone compression fittings. Additionally, a uniquely engineered 3-way selector valve (Sample/Span/Off), metering valve, pressure sensor and flow meter are all integrated into the ELIMINATOR CELL BLOCK. It also provides the user with direct front panel access for installing and replacing sensors, and the ability to air calibrate the analyzer, all without the need for disassembly or tools.

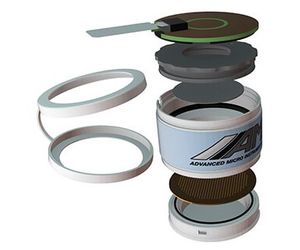

Exploded View of Sensor

AMI’s patented oxygen sensors deliver unmatched performance for ultra-fast response times, accuracy, and reliability. Every sensor undergoes an intense battery of tests to ensure they meet our strict quality control standards. Our trace and percent oxygen sensors operate safely, accurately, and reliably in inert or flammable gas streams, even when containing high levels of H2S - up to 500 ppm, for their entire warranted life. This eliminates the need for a maintenance intensive H2S scrubber that competitive oxygen analyzers require.

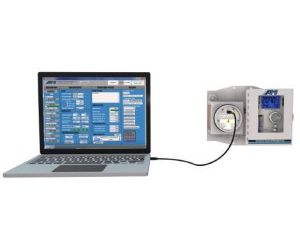

COMMAND CENTER User Interface

The MODEL 2010BX Trace Oxygen Analyzer comes loaded with a full suite of advanced features without the typical up charges. The standard features include: 10-user selectable analog output ranges, large backlit LCD, dual independent alarm relay contacts, comprehensive alarm logic (fail safe or non-fail safe, latching or non-latching and independent alarm delays), alarm bypass, and 3 levels of security settings. Automatic data logging provides detailed time-stamped records of O2 measurement, gas pressure, temperature, supply voltage and power brown-out history. All these features can be accessed with AMI’s powerful COMMAND CENTER software, which works universally across all AMI analyzers.
