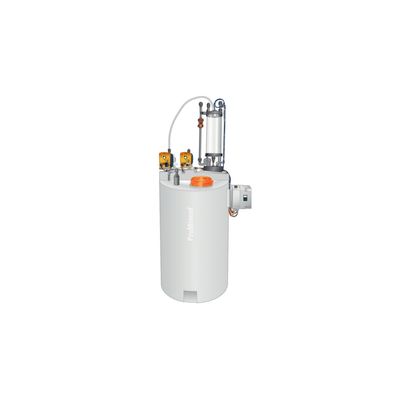

ProMinent Dulcodos - Ammonia Metering System
Metering system DULCODOS ammonia for the low-odour and safe handling of ammonia solution. For a stable pH value and reduced corrosion in the vapour system.
The metering system for the targeted dilution and metering of ammonia solution to prevent corrosion in the steam boiler.
Thousands of steam generators operate in industry. Corrosion in systems equates to idleness, which needs to be prevented. The DULCODOS® Ammonia metering system produces a usable solution of 0.1 to 2.5% from the maximum 25% commercial ammonia product. The transfer pump, measuring tank and mixing tank are important for production of the required solution. The Beta metering pump meters the solution precisely into the steam system to be protected.
- Compact metering system
- Gas-tight application, no escape of ammonia vapours
- Operationally safe thanks to level switch in the measuring tanks, intrinsically safe design
- Steam circuits
- Power plants
- Max. 25% commercial ammonia can be used
- Solution: 0.1 to 2.5%
Ready-to-use assembled metering system, essentially consisting of:
- PE dosing tank with a litre scale, with lockable screw lid and manual stirrer.
- Each with a dispensing and metering pump with suction assembly, level switch, as well as complete rigid PVC pipework with two ball valves, the measuring tank and active carbon filter.
- Terminal box for control of the metering pumps.
- Injection valve VA, ½“, 5 m PE hose, 12x9 mm.
The container with concentrated ammonia solution is not included in the scope of delivery.
Design
Ready-to-use assembled metering system, essentially consisting of:
- Dosing tank made of PE with a litre scale, with lockable screw lid and manual stirrer.
- Each with a dispensing and metering pump with suction assembly, level switch, as well as complete rigid PVC-U‚ pipework with two ball valves, the measuring tank and active carbon filter.
- Terminal box for control of the metering pumps.
- Injection valve VA, ½“, 5 m PE hose, 12x9 mm
- The container with the commercial product is not included in the scope of delivery
