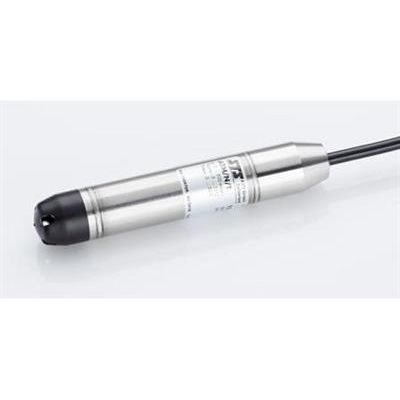

- Model ATM/N/T - Analog Transmitter

From

0

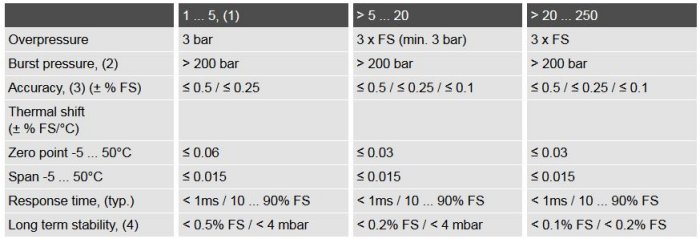

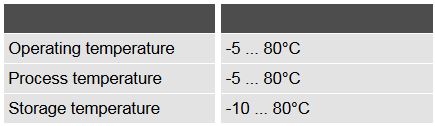

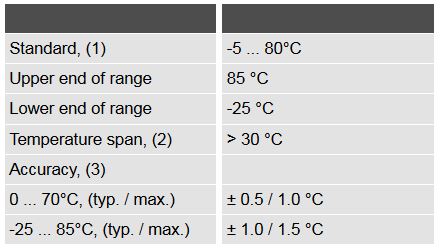

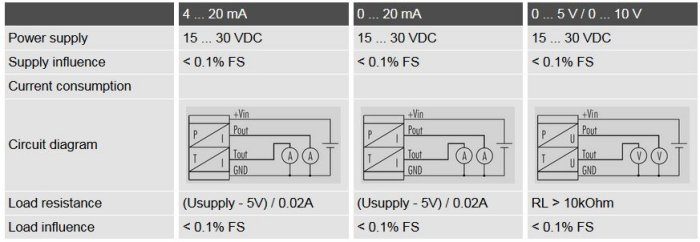

Pressure measuring range: 1 … 250 mH2O. Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS. Temperature measuring range: -5 … 80°C. Operating temperature: -5 … 80°C. Process temperature: -5 … 80°C. 2 Output signals (p & T): 0 … 10 VDC, 0 … 20 / 4 … 20 mA. Materials: Stainless steel, Titanium.

  • Fast customization thanks to configurable product design
  • Short response time suitable for dynamic level measurements
  • Available with overvoltage protection
  • Stainless steel and titanium version for use in acidic or otherwise aggressive media
