STS Sensor Technik Sirnach AG products

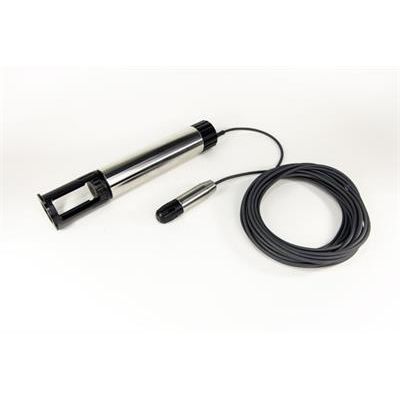

STS - Pressure and Temperature Data Logger for Groundwater Monitoring
DL.WMS.mini is ahighly efficient and reliable short-range radio data logger. It measures both the pressure and the temperature in the medium with an accuracy of 0.2 % FS. The system consists of a data logger and a pressure sensor mounted on the cable end. The DL.WMS.mini can be used in river,lakes, canals or ground water.

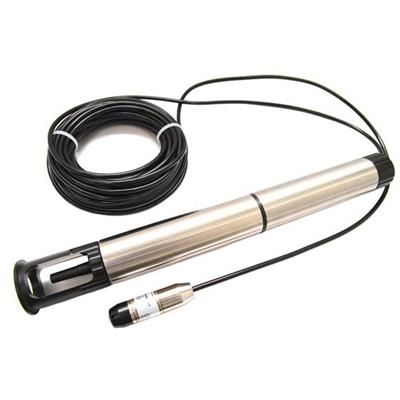

STS - Automated Water Monitoring System
The groundwater data logger WMS (Water Manager Solutions) is a complete system for measuring, storing and remote transmission of water level, water temperature or other parameters such as pH, oxygen etc.Piezoresistive Pressure Sensor for OEM Integration

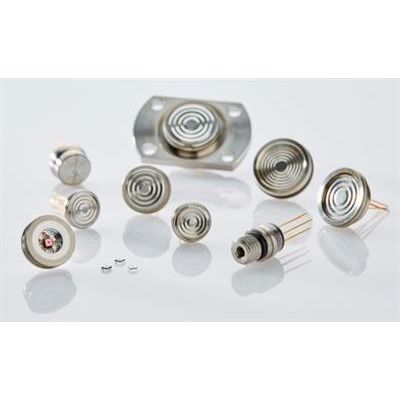

STS - Piezoresistive Transducer
Pressure measuring range: 100 mbar … 1000 bar. Accuracy: ≤ ± 0.50 / 0.25 % FS. Output signal: mV. Materials: Stainless steel, Titanium, Hastelloy.
Pressure Transmitter - Pressure Transmitter 4-20mA / 0-10V
STS - Analog Pressure Transmitter with Temperature Compensation
Pressure measuring range: 100 mbar … 1000 bar. Accuracy: ≤ ± 0.2 % FS. Operating temperature: -40 … 125°C. Process temperature: -40 … 150°C. Output signal: 0 … 5 / 0 … 10 VDC, 4 … 20 mA. Total Error Band: ≤ ± 0.30 %FS (0 … 70°C). Process connection: G 1/4 F, 1/4 NPT, 1/2 NPT, G 1/4 M, G1/2 M. Materials: Stainless steel.
STS - Analog Pressure Transmitter
Pressure measuring range: 100 mbar … 1000 bar. Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS. Operating temperature: -25 … 85°C. Process temperature: -40 … 150°C. Output signal: 0 … 5 / 0 … 10 VDC, 0 … 20 / 4 … 20 mA. Process connection: G 1/4 F, 1/4 NPT, 1/2 NPT, G 1/4 M, G1/2 M. Materials: Stainless steel, Titanium.
STS - Analog Pressure Transmitter with Ceramic Measuring Cell
Pressure measuring range: 100 mbar … 20 bar. Accuracy: ≤ ± 0.25 % FS. Operating temperature: -25 … 85°C. Process temperature: -40 … 125°C. Output signal: 4 … 20 mA. Materials: Stainless steel.
Pressure Transmitter - High Precision Pressure Transmitter 4-20mA / 0-10V

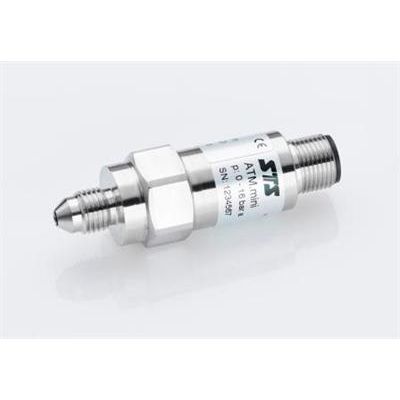

STS - Miniature Pressure Transmitter
Pressure measuring range: -1 bar … 100 bar. Accuracy: ≤ ± 0.2 / 0.1 % FS. Operating temperature: -40 … 125°C. Process temperature: -40 … 125°C. Output signal: 0.5 … 4.5 VDC / 4 …. 20 mA. Total Error Band: ≤ ± 0.5 %FS. Process connection: 1/8 NPT M, 3/8 - 24 UNJF, M8 x 1 M, M10 x 1 M. Materials: Stainless steel.
STS - High Precision Pressure Transmitter
Pressure measuring range: 100 mbar … 1000 bar. Accuracy: ≤ ± 0.10 / 0.05 % FS. Operating temperature: -40 … 125°C. Process temperature: -40 … 150°C. Output signal: 0 … 5 / 0 … 10 VDC, 4 … 20 mA. Total Error Band: ≤ ± 0.30 %FS (0 … 70°C). Process connection: G 1/4 F, 1/4 NPT, 1/2 NPT, G 1/4 M, G1/2 M. Materials: Stainless steel, Titanium.
Pressure Transmitter - Intrinsically Safe Pressure Transmitter - FM/FMc Certified
STS - Analog Pressure Transmitter
Pressure measuring range: 100 mbar … 690 bar. Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS. Operating temperature: -25 … 85°C. Process temperature: -40 … 150°C. Output signal: 4 … 20 mA. Materials: Stainless steel, Titanium.
STS - Analog Pressure Transmitter with Temperature Compensation
Pressure measuring range: 100 mbar … 690 bar. Accuracy: ≤ ± 0.2 % FS. Operating temperature: -40 … 125°C. Process temperature: -40 … 150°C. Output signal: 4 … 20 mA. Total Error Band: ≤ ± 0.70 %FS (0 … 70°C). Materials: Stainless steel.
