Thin and average layers are processed. Ferrous parts should be in small or extraordinary quantities. ASPs are suitable for :
- recycling industries (wood, glass, plastics, cable, etc.)
- quarries, mines and cement works.
- the paper industry,
- the food - processing industry.
TECHNICAL DESCRIPTION
The magnetic circuit of ASPs consists of :
- a machine-welded steel yoke of high permeability,
- a magnetic body consisting of ferrite magnets with high field value.
The unit is locked with synthetic resin in a non - magnetic box.
A moving rubber guard makes it easier to extract by hand the magnetic bodies drawn out by the ASPs.
INSTALLATION METHOD

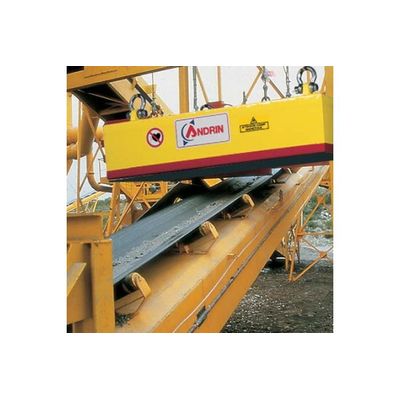

ASPs can be suspended using chains, cables or straps and eyebolts with shackles. They are installed either crossways where the product unwinds or at conveyor chutes.
No energy source is required.
SPECIFICATIONS
Performances vary according to various parameters :
- characteristics of the products to be processed
- properties of the ferromagnetic parts to be extracted
- characteristics of the plant.
Four types of ASP are offered according to the working height : 200, 225, 275, 330 mm.
A questionnaire is attached in our "Iron Removal" document to help you choose from our wide range of iron removal equipment.
THE ADVANTAGES
The simple design provides high performance and solid ASPs. They are dustproof and may be prepared for use in the tropics.
Easily changed into overband, they can be adapted to changes on your production line.
INSTRUCTIONS FOR USE
An operator periodically removes the ferrous parts from the rubber guard on the magnet.
No maintenance and no upkeep.
OPTIONS
- Moving frame
mounted on moving frame for cleaning - Rubber guard
- Suspension frame
- OVBP adaptor kit
- Finish for food - processing
- Borium Iron Neodymium
The ASP is fitted with very high induction Borium Iron Neodymium magnets for certain products and particle sizes.
