Trelleborg - Model 575 -Anger Seal

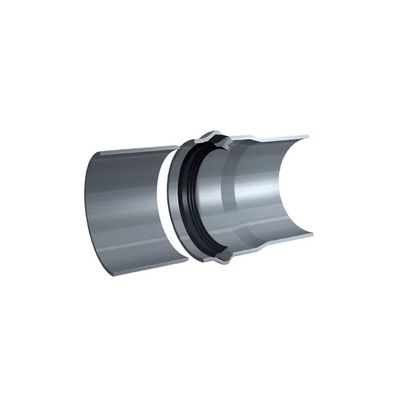

Non-integrated seal for plastic pressure pipes and wastewater conduit in ground. Seal design & function: The Trelleborg 575 Anger seal is a combined lip and compression seal. The seal is positioned in the socket by the pipe manufacturer. The ”main lip” comprises a combined lip and compression section. The ”front and rear lip” locates the seal in the socket groove and absorbs any permissible variations in the groove. The Trelleborg 575 Anger seal meets or exceeds current European standards for both pressure and vacuum, deflection and shear load. Furthermore, the seal design gives low assembly forces making pipe jointing.
- Low jointing force for easy installation
- Minimize risk of seal displacement
- High performance – low cost solution
- Synthetic rubber - Hardness 60±5 IRHD
- Approved in accordance with EN 681-1
- Ozone resistant
On each seal, profile, diameter and appropriate pipe dimensions together with date of manufacture is given. The corresponding information is also included on the packaging.
Subject to change for technical reasons.
- Inspect the spigot, socket and seal for damage and remove any dirt or dust prior to assembly. Chamfer the spigot end and remove all burrs.
- Apply lubricant to the spigot end and immediately bring it into contact with the socket.
- Align spigot and socket, and slide the spigot into the pipe, past the seal
