Petersen Products Company
Multi-Flex - Model 111-1218-8 -Annular Seals

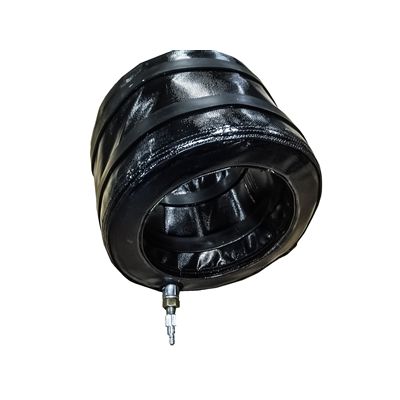

ANNULAR SEAL 12.75" ID X 17.25" OD X 8" CYL.
Most popular related searches
- Annular Seal Contact Length: 8" (203mm)
- Annular Seal ID: 12.75" (324mm)
- Annular Seal OD: 17.25" (438mm)
- Country of Origin: USA
- Inflation Port Type and Size: 1/4" Quick Disconnect Plug
- Material, Outer Ply: Ballistic Nylon Reinforced Polyurethane
- Port Location, Inflation: Centered on Annular End
- Port, Pressure Monitoring Port Location: Centered on Annular Seal
- Port, Pressure Monitoring Port Size: 1/4" Quick Disconnect
- Positioning Loops, No. & Location: Four on Each End ID
- Pressure, Inflation Max.: 25 psi (1.72 bar) When Supported on OD and ID
