- Model EP Metal - Antivibration Elastic Pad With Metal Cover

From

0

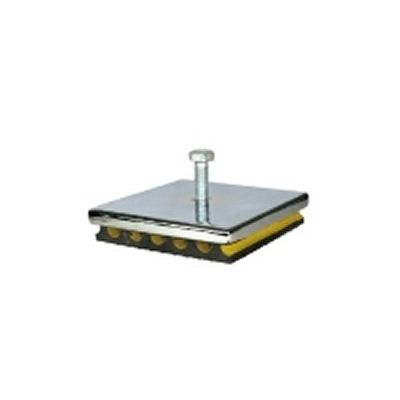

Vibro-EP Metal consists of an elastic element (dimensions 12.5x12.5 cm) and a specially formed galvanised metal cover. The intercession of the steel covers between the base of the machine and the elastic, this ensures that the equable distribution of the load to the entire surface of the elastic element. At the same time the cover protects the rubber from the solar radiation. At the centre of the upper side of the cover an internal M12 thread is incorporated, which accepts the corresponding fixing screw (not included). The beige, green and yellow elastic pads are made of Neoprene type of rubber.

  • Antivibration machinery support
  • Easy to install
  • Machinery fixing capability



ANTIVIBRATION SUPPORTS: Air-compressors - Cutting machines - Printing machines - Fans - Air conditioner units etc.

Elastic Element dimensions: 12.5x12.5x2.5 cm
Total height: 2.8 cm
Internal thread: M12
