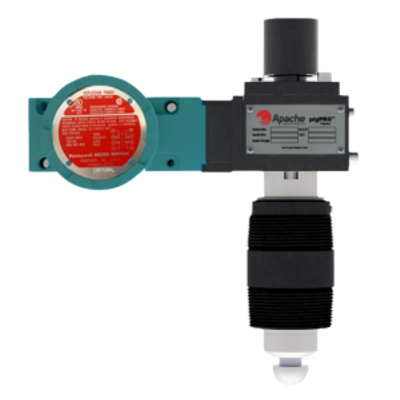

Apache - Model pigPRO Series 55 -Electrical Indicator with Automatic Reset
The Series 55 is an electrical indicator with automatic reset. With its optional manual and automatic reset capabilities, the Series 55 is a highly sought after member of Apache’s pigPRO Series, a patented line of intrusive pig passage indicators that reliably detect the precise location of a cleaning pig as it travels within the pipeline network. When a cleaning pig passes the system’s intruding plunger, it activates the plunger and triggers a visual flag indicator, signaling the pig’s location.
Most popular related searches
pig passage indicator
underground pipeline
pressure seal
pipeline pigging
pipeline pigging system
pigging system
pipeline sealing
pressure pipeline
pipeline cleaning
Extension Pole
Aluminum extensions can be attached to enable detection of the pigs passage on buried pipelines. All pressure sealing components remain below the extension module. Available in lengths 2’ to 10’.
Options Available
- Flange Mount models are designed to connect to existing flanged connections and are available in ANSI Class 150, 300, 600 or 900/1500 flanges
The Series 55 includes a thread mounting nipple, standard lower housing with fluorocarbon O-Rings, hemispherical plunger and weather sealed & explosion proof limit switch. The switch employed on this model is NEMA rated, UL listed and CSA certified to suit most applications.
