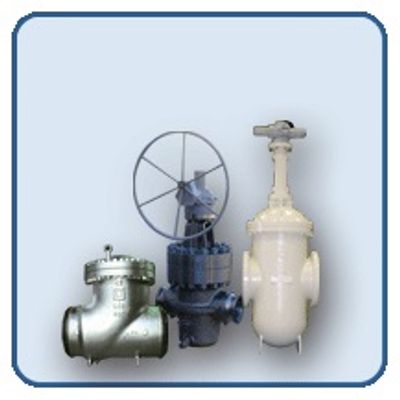

Valvospain - API 6D Through Conduit Gate Valves and API 6D Full Bore Swing Check Valves
Construction: Bolted Bonnet. Gate: Slab Gate or Expanding Gte. Swing Check: Full Bore. Optional outside lever and counter-weight. Optional Hydraulic Damper. Ends: Flanged (RF,FF,RTJ) or Butt Weld (BW). Operación: Manual (handwheel or gearbox). Actuated (Electric, pneumatic or hydraulic).
Most popular related searches
gate valve
through conduit gate valve
through-conduit gate valve
check valve
swing check valve
globe check valve
full bore ball valve
globe valve
gate valve slab
damper
Manufacturing Standars:
- Design: API 6D
- Pressure-Temp. Rating: ASME B16.34
- Face to Face dimension: ASME B16.10
- Flanged Ends:
- ASME B16.5 (up to 24”)
- ASME B16.47 (above 26”)
- Butt Weld ends: ASME B16.25
- Pressure Test: API 6D
Manufacturing Range:
- Ratings: from 150 Lbs up to 2.500 Lbs
- Sizes: Gate: 4” up to 60”
- Swing Check; 2”
