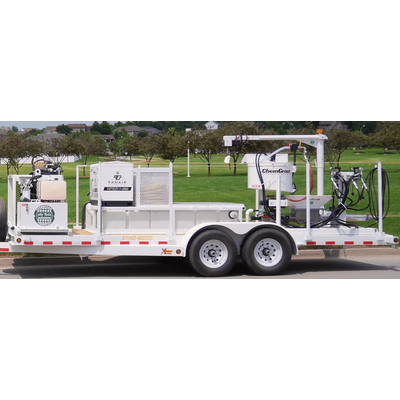

APM - Manhole Rehab Trailer
The permacast hd trailer is a complete cementitious repair system for underground structures. Whether you are a contractor or municipality, this manhole equipment hydraulic system is the best rehab trailer on the market today. Over the past 30 years, we have developed solutions for every conceivable underground structure, including manholes, catch basins, lift stations, and wet wells. With this system you have the ability to line 100 to 125 vertical feet of manholes daily, using a patented, bi-directional, no-entry SpinCaster™, saving you time in the field.
Most popular related searches
progressive cavity pump
pressure washer
manhole
quick coupler
blasting nozzle
spray gun
paddle mixer
cavity pump
manhole equipment
lift station
1.01 – Tandem Axle Trailer:
- Capacity: 14,000 lb GRWR 14,000 lb GAWR
- Deck Width: 83 Inches
- Deck Length: 20 feet
- Standard Features:
- 2 5/16” Ball Coupler Hitch or Lunette Eye with Heavy Duty Safety Chains.
- 6 Way Plug and Loom.
- 7” Channel Frame and Tongue
- Break-Away Kit with Battery
- Stake Pockets & D-Rings
- Two-Inch Treated Pine Floor.
- Leaf Spring Suspension.
- Solid Braced Teardrop Fenders.
- 16” Radial Tires, 8 Bolt Hub, White Steel Spoke Wheels.
- Spare Tire and Carrier. Reflective Marker Tape installed on trailer.
- Department of Transportation Compliant Lighting.
- 10,000 lb. Spring Assisted Jack
- Acid Etched with White Phosphorus, Primed with Auto Grade Primer.
- Painted with Acrylic Enamel with Reflective Pinstripe. (White)
- Pallet Platform for Easy Mortar Loading and Storage.
- MORTAR MIXER
- 45 gallon mixing tank with a 15 gallon holding hopper
- Vaiable speed high-efficiency paddle mixer
- Automatic water metering device, allowing up to 20 GPM
- MORTAR MIXER SPECIFICATIONS
- Capacity, cu. ft.: 6.02
- Capacity, bags: 120 bags per hr
- Weight, lbs. (kg): 795 (360.61)
- Drive: Hydraulics powered by 33HP electric start Kubota turbo diesel
- Dump Action: Slide Gate
- PUMP
- The pump is a progressive cavity pump, hydraulically powered.
- The pump is outfitted with a low-pressure spray gun, quick connect material hoses and quick connect air hoses.
- PUMP SPECIFICATIONS
- Capacity: Up to 64.17 Cubic ft per hr
- Power Source: Hydraulics powered by 33HP electric start Kubota turbo diesel
- Weight, lbs. (kg): 795 (360.61)
- Hand application mortar gun.
- Adjustable crane arm with electric retrieval winch.==
- Two (2) twenty five (25) foot sections of 1” reinforced mortar hose – with quick connect fittings.
- Two (2) twenty five (25) foot sections of ½” air supply hose with quick connect fittings.
- All gauges sealed and liquid filled units.
- Modular in-line air filter/lubrication unit (for all air components).
- Forward/reverse air control valve for robotic applicator.
- Air controls – all air controls will be mounted for ease of operation.
- Air lock system to clean and flush lines.
- Support Equipment:
- VanAir Viper 80cfm Air Compressor
- Pressure washer with either Honda engine or hydraulic
- 250 gallon water supply tank, Pressurized on demand water system, delivers 3.9 GPM @ 45 psi.
- Pressure washer cleaning head – 60 feet, 4000 psi steel reinforced hose with quick coupler, 360 degree rotating washer head with hyper blast nozzles.
- Tool box storage – One (1) 18” x 18” x 36” steel with locks.
- Optional Equipment:
- Plural component high solids epoxy pump for high volume epoxy
- External lighting package.
- Additional toolbox storage
