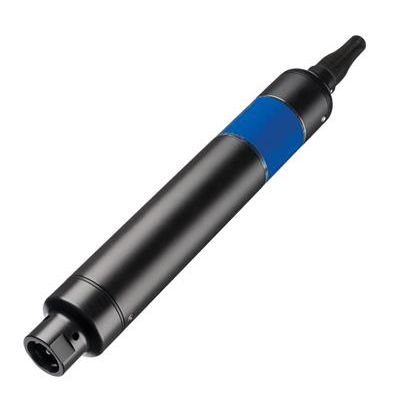

Aquamonix - Model ORP1000 -Oxygen Reduction Potential Sensor

SHARE

The ORP1000 is a fully submersible ORP sensor, well proven to withstand harsh field conditions. The ORP sensor requires a low voltage power supply and provides a calibrated 4–20 mA output.

Most popular related searches

water quality and level sensor

water quality sensor

water level sensor

analog water sensor

temperature monitoring

Innovative, optically isolated signal conditioning
Field proven platinum electrode
Innovative replaceable reference protection ring
Robust, easy clean design
Low power energy requirements
Wide operating temperature range

Measurement Technique: Platinum electrode with internal reference, Field Replaceable electrode
Sensor range (factory calibrated): +/–500 mV, +/–1000 mV, 0–1000 mV
Sensor output: Analogue 4-20 mA
Power Supply: 11–13.2V DC
Dimensions (L x OD) 364.5 mm × 47 mm (14.35″ × 1.85″)
