Aquantis - Model Moisture-Sense -Inline Moisture - Dry Matter Sensor
Moisture-Sense is a new inline moisture – dry matter sensor solution for French fries and other potato-related products. The Moisture-Sense provides real-time feedback on the moisture and dry matter content after drying and frying processes. This makes the Moisture-Sense essential to optimize the industrial processes resulting in a higher cost-efficiency.
- Real-time moisture – dry matter information on a 24/7 basis.
- Measuring through the layer of French fries providing representative measurements.
- Non-destructive measurements making it safe to use. No harm to your product nor the people around the sensor.
Parameter: Moisture-Sense
Sensing technology: Microwave technology
Measuring range moisture: 60 – 90%*
Measuring precision: ±1% *
Sampling rate: 500 Hz
Field frequency: ISM frequency band 2.4 GHz – 2.5 GHz
Emitted power: ~10 dBm (~10 mW)
Housing: Stainless steel AISI 304 – Hygienic design
IP class: IP66
Dimensions transmitter unit (W x H x D): 210 mm x 350 mm x 130 mm
Dimensions receiver unit (W x H x D): 177 mm x 187 mm x 178 mm
Dimensions computing unit (W x H x D): 327 mm x 457 mm x 179 mm
Operational temperature range: -40 °C to 40 °C
Data connection: Ethernet RJ45 plug
Industrial interface: Modbus TCP/IP server
User interface: Web-based user interface
Conventional methods are limited to specific time points during the production. Every measurement depends on the sampling and operator leading to variations of 2% and more. The Moisture-Sense monitors continuously without the need of an operator significantly improving the accuracy.

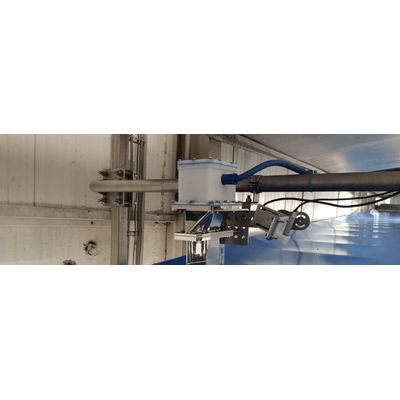

In contrast to conventional methods, the Moisture-Sense is based on microwave technology allowing to measure volumes of bulk material. The microwaves travel from the transmitter (Tx) to the receiver (Rx) measuring the moisture or dry matter over a large volume of French fries. This averages variations between fries providing reliable measurements.
