Aquas INC.

- Model AWS Series - Automatic Water Sampler

From

0

The Sampler is ideal for automatic collection and preservation of liquid samples for water and wastewater monitoring applications. There are multiple modes of sampling such as manual operation and triggered via signals from external instruments.

  • Real-time Data and Alarm Communication
  • Support Cellular and Ethernet Hot backup Redundant Communication
  • Ultra Low Power Consumption, Battery Powered, Autonomously Operating up to 3 years

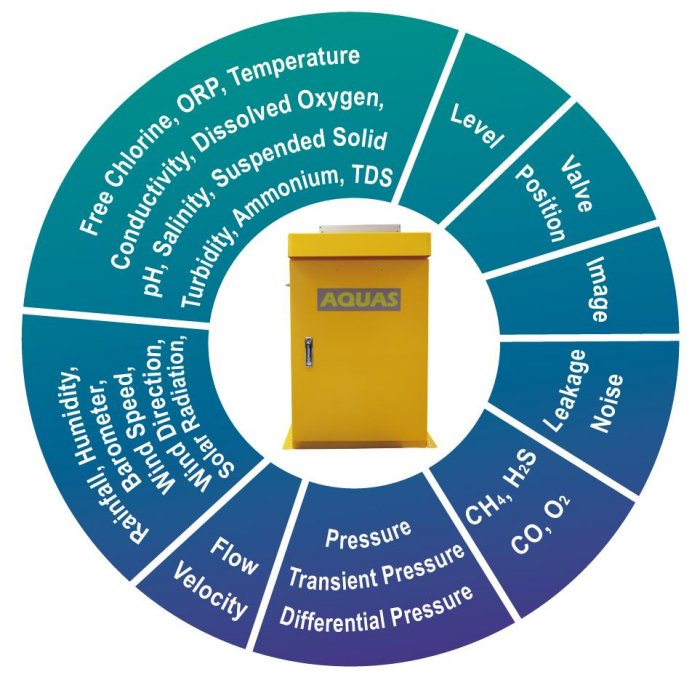

  • Simultaneous Acquisition of 8 Smart Digital Sensors and I/O Modules
  • Auto Sampling Triggered via Digital and Analog Inputs and External Smart Digital Sensors
  • Built-in Standard Modbus TCP Communication Protocol
  • Integral FTP Protocol, Directly Upload Log Files to User Servers
  • Standard OPC Server Software to Seamlessly Connect SCADA Software and Database
  • Cloud Based Platform for Configuration, Operation, Monitoring, Alarm, Control and Data Analysis

  • Sample Hose : Φ1/2'x 8.2 m (length), PVC
  • Sample Pump : High speed peristaltic 12 VDC, 13 mm ID pump with corrosion resistant pump body and roller mechanism
  • Tube : Φ13x1.6 mm, silicon, 1.25 million revolution life
  • Sample : AWS1: 4 bottles (1,000 ml), AWS2: 24 bottles (1,000 ml)
  • Maximum lift : Max. 8.2 m
  • Transport velocity : 3,450 ml/s@1.5 m
  • Sample volume : 100~1,000 ml (programmable)
  • Sample accuracy : ±5%
  • Operator interface : 7' color touch screen
  • Sample mode : manual, alarm, schedule
  • Functions : (1) Sample schedule and interval (1~9,999 mins)
  • (2) Single or multiple bottles per sample
  • (3) Power failure auto restart
  • (4) Auto intake purge
  • (5) Manual test cycle
  • Log : 2,000,000 records, rotating store; periodical; event; alarm
  • Alarm : Water quality, Intake fault, power failure, bottles full, 512 events log
  • I/O module : 1 digital inputs (3~12 VDC or dry contact), 2 analog inputs (4~20 mA)
  • 8 SMR smart digital sensors (RS485)
  • Communication : Modbus RTU protocol, System conguration and setting
  • Power : AWS1: DC 12 V ±10%, 1.5A, 15 AH rechargeable lithium battery, PAN08 DC 18V 10 W solar panel
  • AWS2: DC 12 V ±10%, 1.5A, 15 AH rechargeable lithium battery, PAN06 20 W solar panel
  • Refrigerator : Maintains 4 °C ±1°C (optional)
  • Operation Temperature : 0~65 °C
  • Protection : IP65
  • Housing/b> : SS316
  • Dimension : AWS1: Approx. 350 (W) x750 (H) x550 (D) mm
  • AWS2: Approx. 600 (W) x850 (H) x500 (D) mm
  • Weight : AWS1: Approx. 15 Kg
  • AWS2: Approx. 40 Kg
