Aquas - Model FLO Series -Open Channel Flow Meter
FromAquas Inc.
The FLO series is a highly reliable and cost-effective open channel flow meter with innovative technology for flow monitoring, communication, logging, alarming, control and analysis applications. It is built-in with flow modules, I/Os, cellular communication, Bluetooth, RS485 and GPS module. With robust IP68 water submersible enclosure, the product is designed for frequently flooded underground chambers and extreme temperature and humidity, outdoor locations such as sewer systems, river, channels etc. Ultra low power consumption allows battery or solar power tp ensure for 5 years of continuous operation.
Most popular related searches
open channel flow meter
channel flow meter
open channel flow
flow meter
open channel meter
cloud-based SCADA software
multiparameter water quality sonde
flow velocity
SCADA software
cloud-based SCADA
- Non-Contact Innovative Radar Measurement Technology
- Real-time Data and Alarm Communication
- Ultra Low Power Consumption, up to 10 Years of Operation on Internal Battery
- Robust IP68 Enclosure, Solution without Cabinet
- -40~85°C Operating Temperature, 0~100% RH Operating Humidity
- Support Cellular Communication, No Field Data Collection
- Auto Delivery Incomplete Uploads to Ensure No Data Loss

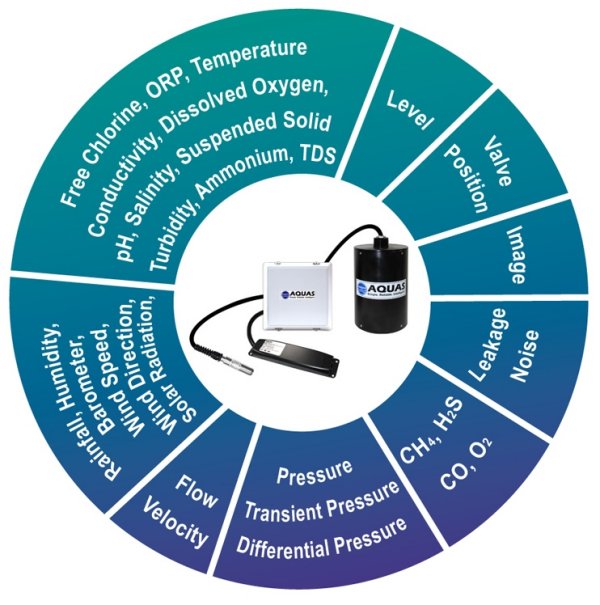

- Simultaneous Acquisition of 8 Smart Digital Sensors and I/O Modules, 1 barometer Sensor and 2DI, 2AI Signals
- Integral FTP Protocal, Directly Upload Log Files to User Server
- Standard OPC Server Software to Seamlessly Connect SCADA Software and Database

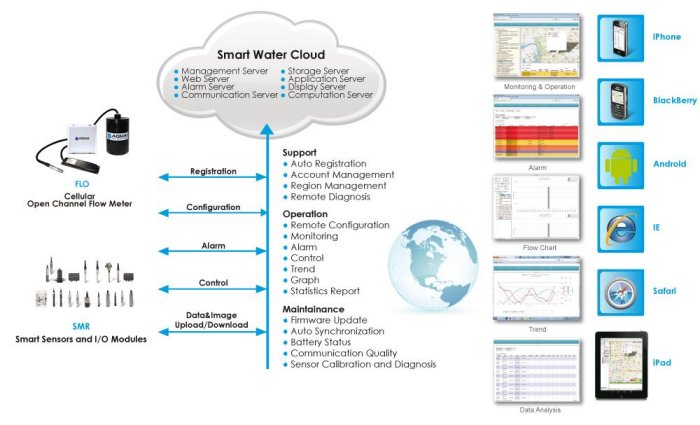

- Cloud Based Platform for Configuration, Operation, Monitoring, Alarm, Control and Data Analysis
Notebook with AQCFG software for configuration
- AQWEB WEB Server software for configuration, automatic data acquisition and storage, remote monitoring, alarming, control, Google Earth fusion display, data analysis, transient pressure analysis, time series trend graph andtabular report functions
- Seamless SCADA software and database connectivity via AQOPC OPC server
- Application interface library for developing user customized software
FLO Wireless Open Channel Flow Meter
- Periodically sample digital transmitters, I/Os and serial devices, logged with time stamp
- Borderless cellular and WiFi communication
- Peer to peer communication
SMR Sensors and I/O Modules
- RS485 serial communication
- Standard Modbus RTU protocol
- Up to 1.2 Km transmission distance
- Flow Sensor: Hydrostatic level, Radar level, radar velocity and level, ultrasonic velocity and level
- Measurement range:
- level: 0~7 m, 0~40 m (optional); flow velocity: 0.02~15 m/s
- flow rate: 0~10,000 cmh; flow volume: 0~1,000,000,000 m3
- Accuracy: level: ±2 mm (radar), ±1 cm (hydrostatic); flow velocity: ±0.01 m/s or ±1% FS
- Resolution: level: 1 mm; flow velocity: 0.1 mm/s; flow rate: 0.01 cmh; flow volume: 0.01 m3
- Digital Input: 2 pulse counter or status input
- Digital output: 2 relay inputs
- Analog Input: 2 4 to 20 mA inputs, 15 bits resolution
- RS485 Port: Connects MAX multiparameter water quality sonde, SMR digital sensors and I/O modules
- Communication: 4G, GPRS, WiFi, Ethernet, NBIoT
- Log:
- 16 MB Flash, 2,000,000 records
- 1 second to 24 hours, rotaating store
- Normal, alarm and turbo logging mode
- Power: Battery
- Alarm: SMS text meassage
- interface: RS485, 115,200 bps, 8 data bits, no parity, 1 stop bit
- Environmental: Operating -40 to 85 oC
- Protection: IP68
- Housing Material: ABS
- Dimensions: 150(W)x150(H)x100(D) mm (80 AH battery);242(W)x185(H)x130(D) mm (240 AH battery)
- Weight: approx. 1.8 Kg (80 AH battery); approx. 5.7 Kg (240 AH battery)
- Support Software:
- AQCFG Configuration and Calibration Software
- AQWEB Web Based SCADA Software
- AQOPC OPC Server Software
