Aquas INC.

- Model HMI Series - Multiparameter Water Quality Controller

From

0

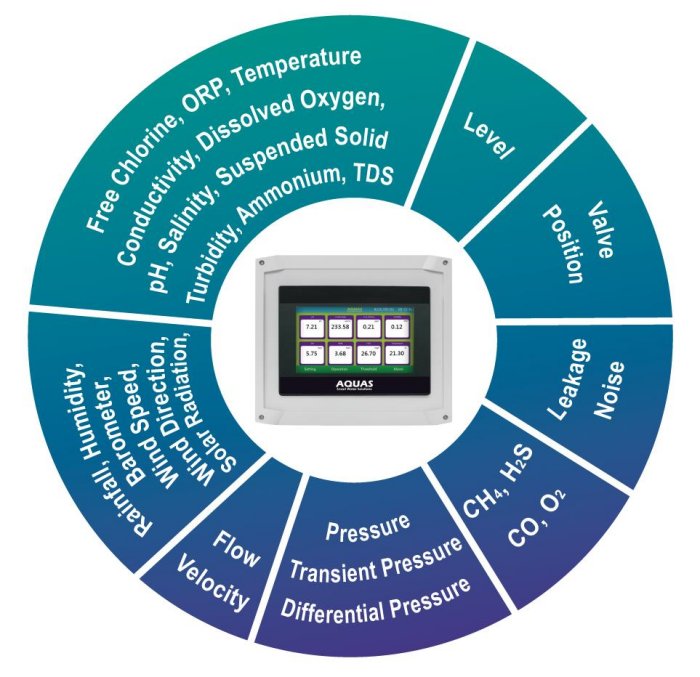

The HMI series is a highly reliable and cost-effective multiparameter water quality controller for data collection, communication, logging, alarming, control and analysis applications. It supports built-in I/Os, cellular, Ethernet, Bluetooth, RS485 and GPS module. The RS485 port is able to connect maximun up to 8 SMR smart digital sensors includes free chlorine, PH, ORP,temperature, conductivity, resistivity, dissolved oxygen, turbidity, salinity, suspended solid, ammonium, flow, velocity, level, pressure etc.

    • Robust IP66/NEMA4X Enclosure, Outdoor Solution without Cabinet
    • Plug and Measure, Seamless Connection up to 8 SMR Smart Digital Sensors
    • 7' High Resolution Touch Screen LCD Display
    • Built-in Data Logger, up to 2,000,000 Log Storage
    • PID Control Analog Outputs
    • Support Cellular and Ethernet Hot Backup Redundant Communication
    • Built-in Battery Backup, up to 30 Days Measurement, Alarm and Logging during Power Outages
    • Alarm Log, SMS Meassaging and Control Outputs
    • System Self Diagnosis and Sensors Monitoring
    • Built-in Standard Modbus TCP Communication Protocol
    • Integral FTP Protocol, Directly Upload Log Files to User Server
    • Standard OPC Server Software to Seamlessly Connect SCADA Software and Database
    • Cloud Based Platform for Configuration, Operation, Monitoring, Alarm, Control and Data Analysis

    • Notebook with AQCFG software for configuration
    • AQWEB WEB Server software for configuration, automatic data acquisition and storage, remote monitoring, alarming, control, Google Earth fusion display, data analysis, transient pressure analysis, time series trend graph andtabular report functions
    • Seamless SCADA software and database connectivity via AQOPC OPC server
    • Application interface library for developing user customized software

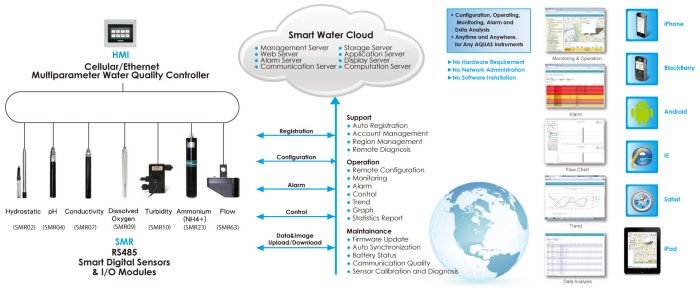

        HMI Multiparameter Controller

    • Periodically sample digital transmitters, I/Os and serial devices, logged with time stamp
    • Borderless cellular and WiFi communication
    • Peer to peer communication

        SMR Smart Digital Sensors and I/O Modules

    • RS485 serial communication
    • Standard Modbus RTU protocol
    • Up to 1.2 Km transmission distance

    • Digital Input : 4 pulse counter or status inputs
    • Digital Output : 2 relay outputs
    • Analog Input : 4 4 to 20 mA inputs, 15 bits resolution
    • Analog Output : 2 4 to 20 mA outputs, 12 bits resolution
    • RS485 Port : Connects up to 8 SMR digital sensors; and 1 H2O water quality spectrometer
    • Communication : 4G, GPRS, Ethernet
    • Log : 16 MB Flash, 2,000,000 records
    • 1 second to 24 hours, rotaating store
    • Normal, alarm and turbo logging mode
    • Power : DC12 V, 1.5 A
    • Alarm : HH, H, L, LL 4 level threshold, SMS text meassage
    • Interface : RS485, 115,200 bps, 8 data bits, no parity, 1 stop bit
    • Environmental : Operating 0~65oC
    • Protection : IP66/NEMA4X
    • Housing Material : ABS
    • Dimensions : 265(W)×234(H)×122(D) mm
    • Weight : 2 Kg
    • Support Software : AQCFG Configuration and Calibration Software
    • AQWEB Web Based SCADA Software
    • AQOPC OPC Server Software
