Aquas - Model One Series -Compact-Sized Groundwater Logger
The ONE series are compact-sized, simple and cost-effective wireless water quality and level logger. It is easy to be deployed across a wide range of water and groundwater, sewer , mine, river, lake and reservior water quality monitoring applications. It built-in RS485 port to connect up to 8 SMR digital sensors includes level, conductivity, pH, dissolved Oxygen, turbidity, total suspended solids, temperature. Ultra low power consumption allows battery power to ensure 5 years of continuous operation. With robust IP68 water submersible enclosure, the product is perfectly used in many monitoring applications such as quifer characterization, flood and stormwater, construction and mine, drilling and well, coastal estuaries and wetlands, lake and reservoir.
- Rugged sub-2" design make it perfect for groundwater water quality monitoring
- Real-time Data and Alarm Communication
- Ultra Low Power Consumption, up to 5 Years of Operation on Internal Battery
- Robust IP68 Enclosure, Continuous Submersible to 10 m of Water, Solution without Cabinet
- -40~85°C Operating Temperature, 0~100% RH Operating Humidity
- Cellular Communication, No Field Data Collection
- Auto Delivery Incomplete Uploads to Ensure No Data Loss
- Simultaneous Acquisition of 9 Smart Digital Sensors, including Level, pH, ORP, Temperature, Conductivity , Dissolved Oxygen, Turbidity...,etc
- Built-in Standard Modbus TCP Communication Protocol
- Integral FTP Protocal, Directly Upload Log Files to User Servers
- Standard OPC Server Software to Seamlessly Connect SCADA Software and Database

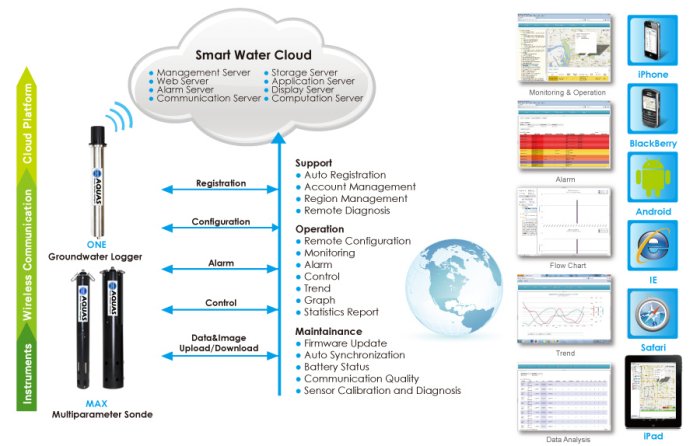

- Cloud Based Platform for Configuration, Operation, Monitoring , Alarm, Control and Data Analysis
- Notebook with AQCFG software for configuration
- AQWEB WEB Server software for configuration, automatic data acquisition and storage, remote monitoring, alarming, control, Google Earth fusion display, data analysis, transient pressure analysis, time series trend graph andtabular report functions
- Seamless SCADA software and database connectivity via AQOPC OPC server
- Application interface library for developing user customized software
ONE Wireless Logger
- Periodically sample sensors and logged with time stamp
- Borderless cellular communication
- Peer to peer communication
MAX Multiparameter Sonde
- RS485 communication
- Standard Modbus RTU protocol
- Up to 1.2 Km transmittion distance
- Digital Input : 2 pulse counter or status inputs
- RS485 Port : connects digital level transmitter
- Communication : 4G, GPRS
- Log :
- 16 MB Flash, 2,000,000 records
- 1 second to 24 hours, rotaating store
- Normal, alarm and turbo logging mode
- Power : 5 VDC ±10%, 1A
- Alarm : HH, H, L, LL 4 level threshold, SMS text meassage
- Interface : RS485, 115,200 bps, 8 data bits, no parity, 1 stop bit
- Environmental : Operating -40 to 85 oC
- Protection : IP68
- Housing Material : POM
- Dimensions : Φ 50x373(H) mm
- Weight : Approx. 600 g
- Support Software :
- AQCFG Configuration and Calibration Software AQWEB Web Based SCADA Software
- AQOPC OPC Server Software
