Aquas - Model ROD Series -Flooding Logger
FromAquas Inc.
The ROD series are compact-sized, simple and cost-effective flooding level logger. It is easy to be deployed across a wide range of floodable locations, under pass and tunnel for flooding monitoring. It is ultra low power consumption to ensure continuous operation. With robust IP68 water submersible enclosure, the product is perfectly used in stormwater monitoring applications.
Most popular related searches
cloud-based SCADA software
cloud-based SCADA
field data acquisition
level data logger
level logger
SCADA software
pulse counter
water enclosure
flood level
flood alarm
- Ruged 2" design, perfect for road mounted installation
- Real-time Data and Alarm Communication
- Ultra Low Power Consumption, up to 5 Years of Operation on In ternal Battery
- Robust IP68 Enclosure, Continuous Submersible to 10 m of Water
- Robust IP68 Water Submersible Enclosure
- Auto Flash Warning Light
- -40~85°C Operating Temperature, 0~100% RH Operating Humidity
- Support Cellular Communication, No Field Data Collection
- Auto Delivery Incomplete Uploads to Ensure No Data Loss
- Built-in Standard Modbus TCP Communication Protocol
- Integral FTP Protocal, Directly Upload Log Files to User Servers
- Standard OPC Server Software to Seamlessly Connect SCADA Soft ware and Database

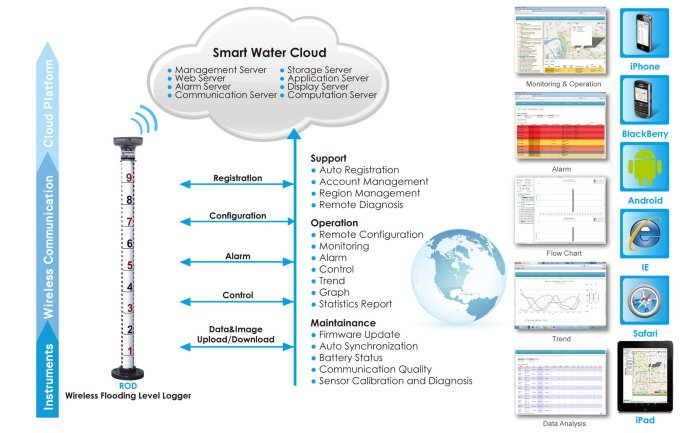

- Cloud Based Platform for Configuration, Operation, Monitoring, Alarm, Control and Data Analysis
AQWEB/AQOPC Station
- Notebook with AQCFG software for configuration

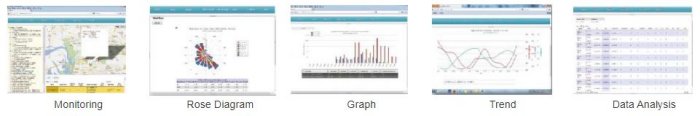

- AQWEB WEB Server software for configuration, automatic data acquisition and storage, remote monitoring, alarming, control, Google Earth fusion display, data analysis, transient pressure analysis, time series trend graph and tabular report functions
- Seamless SCADA software and database connectivity via AQOPC OPC server
- Application interface library for developing user customized software
ROD Wireless Flooding Meter
- Periodically sample sensors and logged with time stamp
- Borderless cellular communication
- Peer to peer communication
- Digital Input: 2 pulse counter or status inputs
- RS485 Port: connects digital level transmitter
- Communication: 4G, GPR
- Log:
- 16 MB Flash, 2,000,000 records
- 1 second to 24 hours, rotaating store
- Normal, alarm and turbo logging mode
- Power: 5 VDC ±10%, 1A; internal battery
- Light: Auto flooding warning
- Interface: RS485, 115,200 bps, 8 data bits, no parity, 1 stop bit
- Environmental: Operating -40 to 85oC
- Protection: IP68
- Housing Material: POM (Logger); SS316L (level sensor); PVC (pole)
- Dimensions: Φ 50 mm; Height: 100, 150, 200 cm
- Weight: Approx. 2.5 Kg, 1.2 Kg (no pole)
- Support Software:
- AQCFG Configuration and Calibration Software
- AQWEB Web Based SCADA Software
- AQOPC OPC Server Software
- Level Module:
- Type: hydrostatic
- Measurement range: 0~3 m
- Accuracy: 0.1% FS; 0.05% FS (optional)
- Resolution: 0.01% FS
- Repeatability: ±0.025% FS
