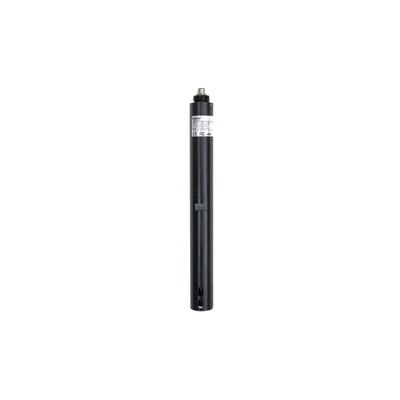

Aquas - Model SMR08 Series -Total Dissolved Solids Analyzer
FromAquas Inc.
Total Dissolved Solids Analyzer is connected directly via RS485 communication interface, providing simple, reliable, cost-saving process data with remote monitoring, calibration, configuration and diagnostics capabilities. TDS Analyzer Housing in a robust IP68 proof enclosure, 1500 N tensile strength Kevlar reinforced cable, up to1.2 km digital data transmission, the transmitter is ideally used in water/wastewater industry.
Most popular related searches
total dissolved solids
multiparameter water quality sonde
multiparameter water quality
industrial water treatment
water quality monitoring
water quality monitoring buoy
water quality sonde
multiparameter water quality monitoring
water quality
drinking water
- All-in-One Compact Housing, Built-in Transmitter and Sensors
- Robust IP68 Water Submersible Protection
- Plug & Play, On-line Realtime Measurement
- Ultra Low Power Consumption, Ideal for Outdoor Applications
- 1500 N Tensile Strength Kevlar Reinforced Cable
- Surge Protection for Power and RS485 Communication
- RS485 Digital Communication, Minimize Cabling and Engineering Cost
- Standard Modbus RTU Protocol, Direct Connected with PLC, HMI
- Onboard Memory Allowing Users Easily Calibrate and Configure Sensor at Lab and Distribute to Various Fields Sites
- Software Tool for Data Monitoring, Calibration , Configuration and Diagnosis
- Measurement range: 0 ~ 2,000 mg/L
- Accuracy: ±2% of reading
- Resolution: 0.1 mg/L
- Repeatability: ±1% measured value
- Operation pressure: Max.3 Kgf/cm²
- Operating temperature: 0~60 °C
- Response time: 1 sec
- Protection: IP68
- Temperature sensor: Pt1000
- Temperature measurement range: 0 ~ 60 °C
- Temperature accuracy: ±0.5 °C
- Process connection: M28x1.5
- Housing: POM
- Dimension: Φ 36 x 338 mm
- Weight: analyzer: approx. 150 g (POM); cable: 80 g/m
- Drinking water, surface water, groundwater, industry, water treatment, wastewater
- Output Signal: RS485 (Modbus RTU protocol), 19,200 bps, 8 data bits, no parity, 1 stop bit; 4~20 mA (optional)
- Data Resolution: 16 bits (0.001% FS)
- Surge Protection: 4000 V DC
- Power: 3.6~12 V DC ±10%, 15 mA
- Protection: polarity, overload, short circuit
- Safety: CE, FCC
- Drinking water, surface water, groundwater, industry, water treatment, wastewater
- Theoretically, water free of any contaminants will not conduct electricity. The ability to carry on electric current depends on the presence of ions; conductivity increases with increasing ion concentration. Total dissolved solids of a solution is calculated by measuring the electrical current between two electrodes set a fixed voltage source and immersed in water sample.
- PRO: IP68 Wireless Controller
- ECO: IP68 Wireless Logger
- ARK: IP66 Water Quality Monitoring Buoy
- MAX: IP68 Multiparameter Water Quality Monitoring Sonde
- HMI1: IP66 Multiparameter Controller , 2 SMR Sensor inputs
- HMI2: IP66 Multiparameter Controller , 4 SMR Sensor inputs
- HMI3: IP66 Display Controller Logger, 8 SMR Sensor inputs
- PAD: IP67 Handheld Multiparameter Water Quality Meter
- SFC: Flow Chamber
- BOX01: RS485 hub(4 ports)
- BOX02: RS485 hub(8 ports)
- CAB12: IP68 2 ports RS485 cable
- PIM01: Pipe mounting(extractable)
- PIM02: Pipe mounting(fixed)
- MSP01: Multi-Sensor plate (assembly to 4 sensors)
- MSP02: Multi-Sensor plate (assembly to 7 sensors)
- MSE01: Multi-Sensor Enclosure (assembly to 4 sensors)
- MSE02: Multi-Sensor Enclosure (assembly to 7 sensors)
