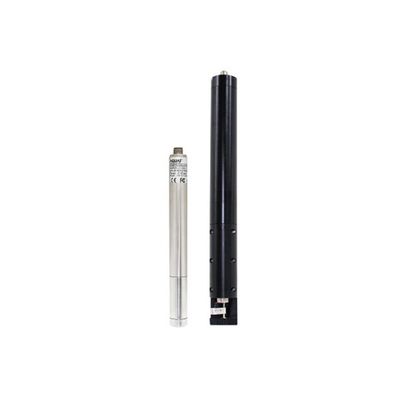

Aquas - Model SMR09 Series -Dissolved Oxygen Analyzer
FromAquas Inc.
Dissolved Oxygen Analyzer is connected directly via RS485 communication interface, providing simple, reliable, cost- saving process data with remote monitoring, calibration, configuration and diagnostics capabilities. The Dissolved Oxygen Meter housing 0in a robust IP68 proof enclosure, 1500 N tensile strength Kevlar reinforced cable, up to 1.2 km digital data transmission, the Dissolved oxygen Transmitter is ideally used in water/wastewater industry.
Most popular related searches
dissolved oxygen analyzer
oxygen analyzer
water quality analyzer
dissolved oxygen transmitter
dissolved oxygen meter
surface water
groundwater industry
water industry
temperature sensor
oxygen concentrator
- All-in-One Compact Housing, Built-in Transmitter and Sensors
- Robust IP68 Water Submersible Protection
- Plug & Play, On-line Realtime Measurement
- Ultra Low Power Consumption, Ideal for Outdoor Applications
- 1500 N Tensile Strength Kevlar Reinforced Cable
- Temperature Compensation
- Surge Protection for Power and RS485 Communication
- RS485 Digital Communication, Minimize Cabling and Engineering Cost
- Standard Modbus RTU Protocol, Direct Connected with PLC, HMI
- Membrane is over 12 Months Long Period of Life
- Auto Cleaning Wiper, Less Maintenance
- Onboard Memory Allowing Users Easily Calibrate and Configure Sensor at Lab and Distribute to Various Fields Sites
- Software Tool for Data Monitoring, Calibration , Configuration and Diagnosis
- Measurement range : 0~20 ppm (mg/L) (0~200 %)
- Accuracy : 0.1 mg/L (0~8 mg/L)
- 0.2 mg/L (8~20 mg/L)
- Resolution : 0.01 mg/L
- Repeatability : ±0.5% FS
- Light source : LED 495 nm
- Operation pressure : 5 Kgf/cm2
- Operating temperature : 0~50 °C
- Process flow rate : Min. 0.1 m/s
- Response time : 1 sec
- Protection : IP68
- Temperature sensor : NTC10K
- Temperature measurement range : 0~50°C
- Temperature accuracy : ±0.5 °C
- Housing : SS316L; Titanium
- Dimension : Φ 16x101 mm
- Φ 39Χ310 mm (with wiper)
- Weight :
- analyzer: approx. 600 g (SS316L); approx. 400 g (Titanium)
- cable: 80 g/m
- Surface water, groundwater, industry, fishiery
- Output Signal: RS485 (Modbus RTU protocol), 19,200 bps,8 data bits, no parity, 1 stop bit; 4~20 mA (optional)
- Data Resolution: 16 bits (0.001% FS)
- Surge Protection: 4000 V DC
- Power: 3.6~12 VDC ±10%, 5 mA
- Protection: polarity, overload, short circuit
- Safety: CE, FCC
Typical Applications
- Surface water, groundwater, industry, fishiery
Measurement Method
- It is based on fluorescent optical technology approved by the ASTM international Method D888-05. Without calibration requirements and oxygen consumption, this lechnology allows measurement in all situations, especially in very low oxygen concentrations environment.
