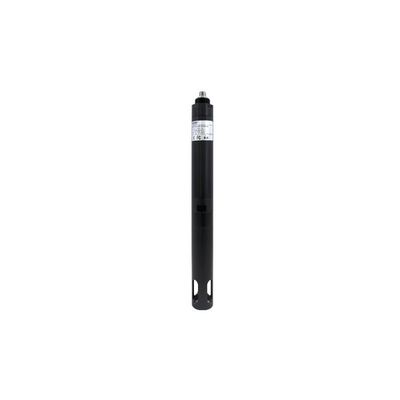

Aquas - Model SMR40 Series -Fluoride (F-) Analyzer
FromAquas Inc.
Fluoride Analyzer is connected directly via RS485 communication interface, providing simple, reliable, cost- saving process data with remote monitoring, calibration, configuration and diagnostics capabilities. Housing in a robust IP68 proof enclosure, 1500 N tensile strength Kevlar reinforced cable, up to 1.2 km digital data transmission, F- Analyzer is ideally used in water/wastewater industry.
Most popular related searches
fluoride analyzer
ion-selective electrode
industrial water treatment
water industry
surface water
industrial water
selective electrode
colorimetry method
remote monitoring
wastewater industry
- Robust IP68 Water Submersible Enclosure, Solution Without Cabinet
- On-line Realtime Measurement
- Ultra Low Power Consumption, Ideal for Outdoor Applications
- Temperature Compensation
- High Reliability, Drift Free
- Surge Protection for Power and RS485 Communication
- 1.2 Km RS485 Digital Communication, Minimize Cabling and Engineering Cost
- Software Configuration Calibration and Data Monitoring
- Onboard memory allowing users to easily calibrate and configure sensor at lab and distribute to various fields sites
- Standard Modbus RTU Protocol, Direct Connected with PLC, HMI, Eliminate I/O Module Cost
- Type: ISE
- Measurement range: 0~1,000 mg/L
- Accuracy: ±10 % FS ±0.2 mg/L
- Resolution: 0.01 mg/L
- Repeatability: ±5 % FS ±0.2 mg/L
- Operating pH: pH 5~8
- Operation pressure: Max. 3 Kgf/cm2
- Operating temperature: 0~50 °C
- Process flow rate: Min, 40m/sec
- Response time: <2 min (90%)
- Temperature sensor: Pt100
- Protection: IP68
- Temperature measurement range: 0~40 °C
- Temperature accuracy: ±0.5 °C; ±0.1 °C (optional)
- Process connection: M26x1.5
- Housing: POM
- Dimension: Φ 26 x 221 mm
- Weight:
- analyzer: approx. 180 g (POM)
- cable: 80 g/m
- Output Signal: RS485 (Modbus RTU protocol), 19,200 bps, 8 data bits, no parity, 1 stop bit; 4~20 mA (optional)
- Data Resolution: 16 bits (0.001% FS)
- Surge Protection: 4000 V DC
- Power: 3.6~12 V DC ±10%, 20 mA
- Protection: polarity, overload, short circuit, lightening
- Safety: CE, FCC
Typical Applications
- Surface water, industry, fishery, water treatment, wastewater
Measurement Method
- The ion selective electrode continuous measurement of potassium is carried out with a specific membrane that is selective of potassium ion. That membrane create charge seperation between the water surrounded electrode and internal filling solution. The charge is measured as a voltage that changes the concentration in the water adjacent the membrane. Compared with the traditional colorimetric method, there are many advantages such as fast response time, more accurate, easier and no reagents used.
