Aqwise AGAR - Moving Bed Bioreactor MBBR

- Moving Bed Bioreactor MBBR

0

Aerobic treatment for water and wastewater is highly effective and widely in use worldwide. Aqwise AGAR® (Attached Growth Airlift Reactor) technology is a proprieatry process that utilizes biofilm grown on carrier media which aerobically degrade soluble organic pollutants in wastewater.

The AGAR MBBR (Moving Bed Biological Reactor) technology is a simple, single-through process, where all biological activity takes place on the biomass carriers. This process prevents sludge recycle from a secondary clarifier. MBBR technology is robust and reduces soluble pollutants with minimal process complexity. MBBR solutions also utilize a significantly smaller physical footprint compared to conventional aerobic treatment methods. MBBR is typically used for either high load industrial applications, as stand-alone or as a buffer stage, as well as for robust simple-to-operate municipal facilities.

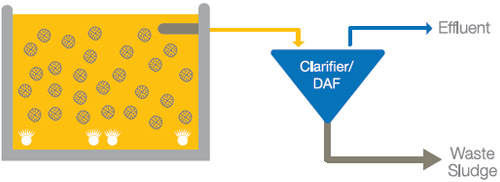

The process configuration designed for BOD removal only is a once-through design, with 1 to 2 process stages in series. The number of stages is determined according to the required effluent quality. Wastewater enters the reactor, and effluent exits the reactor to a solids separation unit such as a clarifier, a DAF unit, media filtration, etc. In this configuration, there is no sludge recycle to the aeration tank, and all of the biological activity takes place in the bio-film on the carriers.

When Nitrogen removal is also required, the process will include a larger number of process stages, and an internal circulation of nitrified effluent to a pre-denitrification basin, but other than this, there is no sludge recycle from the solids separation unit.

The MBBR configuration is extremely well suited for a wide range of applications: from pre-treatment of RBC of industrial wastewater in order to cut down the organic load, to full treatment of municipal wastewater to the most stringent effluent requirements, as a stand alone solution or as a polishing of existing solutions such as lagoons.

Videos related to this product

Related articles

  • WWTP Georgia, USA - A Case Study

    Case Study: Municipal WWTPClient: Georgia – USAStart Up: 2009Capacity: 1,900 m3/d Overview The extensive municipal WWTP was required to upgrade its effluent quality to include extensive Ammonia removal. The project was conducted by Aqwise’s partner in North America, Siemens Water Technologies Corp. Requirement The city of Folkston, Georgia, needed to upgrade its lagoon system to meet new regulation regarding Ammonia removal. The extensive system consists of primary lagoons, followed by a constructed wetland,...

  • Aqwise`s poster at the 2008 Weftec convention - Distribution of microbial population within a moving bed bio-film reactor (MBBR) combining a `denitrfiltration` unit

     Author: Nir Assulin, Ronen Shechter, Yigal Master and Tamar Arbel

    Introduction At high influent N levels , there is a need in Pre- and Post (Endogenous)-denitrification stages, requiring addition of an external electron donor. Systems based on the MBBR (Moving Bed Bio-film Reactor) process have high potential for treating domestic and industrial wastewater. Among process advantages: Elimination of sludge recirculation, Efficient ammonia and organic matter removal & Easy M&O. Disadvantage – poor sludge sedimentation properties and poor effluent clarification. The...

  • Case study: Pulp & paper industry

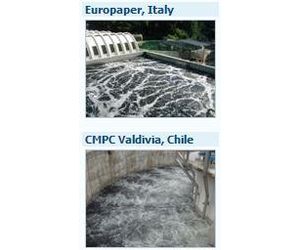

    OverviewThe paper mill at Valdivia produces card board from chemical and mechanical pulp. With the installation of an additional paper machine, the wastewater flow increased from 4,000 m3/d to 8,500 m3/d and therefore an extension of the existing wastewater treatment plant was required. RequirementSo far, the existing effluent treatment plant consisted of a primary treatment (DAF) and a sludge dewatering unit (belt press) for the treatment of 4,000 m3/d wastewater. Due to the installation of an additional paper...
