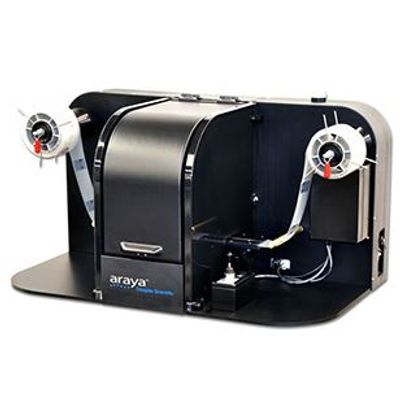

Araya - Inline Fluorescence Detection Instrument

SHARE

Araya is an inline fluorescence detection instrument that includes fully automated Array Tape in-feed, bar code reading, fluorescence detection, and Array Tape out-feed. The typical scan time of a 384-well array in Array Tape is 28 seconds. One reel of 200 arrays in 384 format can be read out in approximately 2 hours.

Most popular related searches
PCR system
genotyping
well plate
bathing water
assay
centrifuge
genotyping system
PCR instrument
  • Genotyping application Array Tape® Process on Nexar, Soellex and Araya®
  • Build assay The Nexar dispenses 0.8 µL sample and 0.8 µL reagent in the equivalent of 277 384-plates in a continuous strip of Array Tape
  • Process Entire reel of Array Tape is sealed and loaded into the Soellex water bath for approximately 90-120 minutes
  • Dry The reel of Array Tape is dried (optional on a custom centrifuge)
  • Detection The Araya scans the entire reel at a rate of 28 seconds per 384-well array
  • Plates/day 400 arrays (384 wells)
  • Data points/day 153,600
  • Processing time 8 hours
