ARC Filtration System Ltd
Products
ARC - Model ECO-GF - Glass Fiber ...

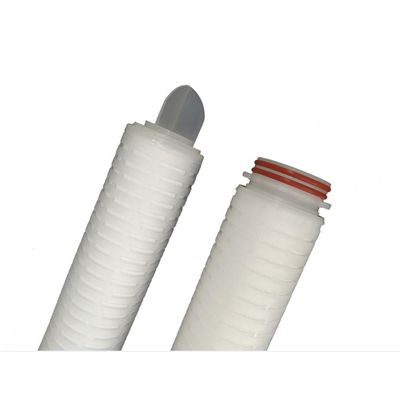

ARC - Model ECO-GF -Glass Fiber Pleated Filter

ECO-GF is a high dirt holding depth filter, the fiberglass filter media provide a high dirty holding and a long work life, it with good performance to filter the liquid clear, the large filtration area provide high flow rates and low pressure drop.

Most popular related searches

Outer Cage: Polypropylene
Inner Cage: Polypropylene
Endcaps: Polypropylene
O-ring & Gasket: Silicone, EPDM
Filter Media: Glass Fiber

Ratings from 0.5 to 25 micron
Absolute Filter Rating
Multi-layers filter media up to five
Long service life & economy costs
FDA listed materials components

OD:2.7"(70mm)
Length:10",20",30",40"

Normal Operation Temperature: up to 55°C
Max Operation Temperature: 80°C△P≦1Bar
Maximum Pressure differential: 4.2bar at 25°C
Maximum Reverse pressure differential: 2.1 bar at 25°C
Filtration Area: 0.6m2
Work PH Value: 1-14
Back Wask: not rcommend

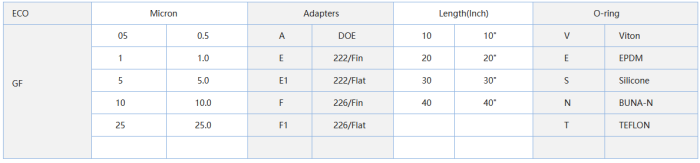

Part No=GF+Micron+Adapters+Length+O-ring
EG: A 40 inch 1.0um filters with 226/Fin adapters and Viton O-ring
The Part NO:GF1F40V

ARC - Model ECO-GF -Glass Fiber Pleated Filter

Materials of Construction

Features

Dimensios

Specifications

Ordering Guide

Part No=GF+Micron+Adapters+Length+O-ring
