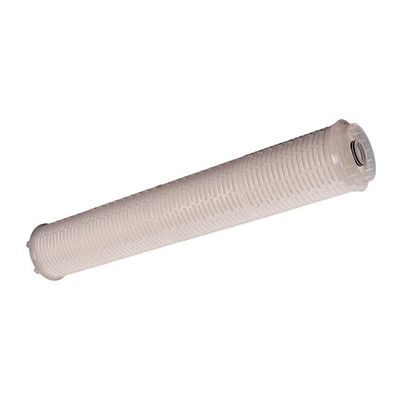

ARC - Model HFL-C -High Flow Filters
HFL-C Filter provide a high filtration area with 6"OD, the length is 40 inch can reach to 60inch. The polypropylene filter media with perfect chemicals performacne, can use for differenrt regions, the depth structure offers widly gradient filtration effiencicy.The inner oring insures no baypass, the handle design makes the installation more easier.
Most popular related searches
- Outer Cage: Polypropylene
- Inner Cage: Polypropylene
- Endcaps: Polypropylene
- O-ring & Gasket: Silicone, EPDM
- Filter Media: Polypropylene
- High performance filter media
- Outide-to-inside fluid flow
- High surface area
- Long service life
- FDA listed all polypropylene components
- OD: 6"(152mm)
- Length: 40",60"
- Max Operation Temperature: 80°C
- Maximum Pressure differential: 3.4bar at 60°C
- Recommended Change out DP: 2.4Bar at 20°C
- Part No=HFLC+Micron+Filter Media Structure+Length+O-ring
- EG: A 60 inch 0.45um filters with Vertical filter media and epdm O-ring
- The Part NO:HFLC045VCE
