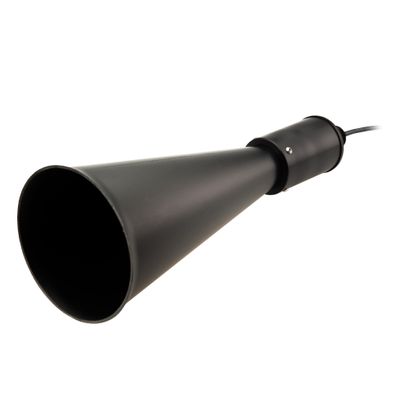

AIRMAR - ART15 Long-Range Ultrasonic Airducer Transducer
AIRMAR's ART15 Airducer Provides the Longest Ultrasonic Range AvailableThe ART15 is an ultrasonic Airducer which can deliver long range level measurements on both solids and liquids. With a range of up to 60 m (197'), the ART15 is ideal for applications in silos, large wells, wastewater facilities and large capacity tanks. A built-in thermistor provides ambient temperature. The ART15 is a cost-effective alternative to radar technology when level sensing over longer distances is required.
Applications: silos, wells, wastewater facilities, large capacity tanks, river crossings/bridges
Delivers long range level measurement up to 60 m (197')
Extended range without the high cost of radar
Built-in thermistor
Cable length can be customized
Also available without thermistor
Best Operating Frequency: 15kHz +/-0.5kHz
Minimum Transmit Sensitivity at Best Transmit Frequency: 123 dB re 1μPa/V at 1 m
Minimum Receive Sensitivity at Best Receive Frequency: -148 dB re 1V/μPa
Minimum Parallel Resistance @15kHz: 100 Ohm
Minimum and Maximum Sensing Range: 1-60 m
Beamwidth (@ -3 dB Full Angle): 6° +/-2°
Maximum Driving Voltage (2% Duty Cycle Tone Burst): 900Vpp
Operating Temperature: -30°C to 60°C
Thermistor Operating Range: -20°C to 60°C
Weight: 2.6 lbs / 1.18 kg
Cable Length: 10 m
Housing Material: Aluminum, static dissipative Kynar, static dissipative PE
Acoustic Window: LDPE
