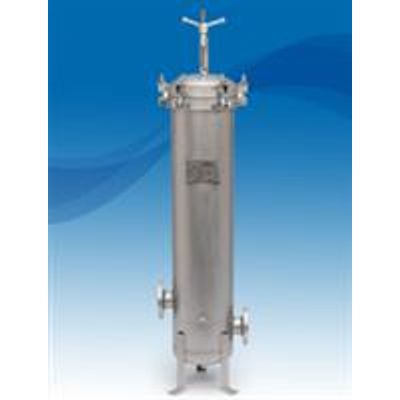

Shelco - Model USB Series -ASME Code Bag Housings Single Through Six Round
Shelco Filter’s USB and USF filter housings are ASME Code certified. This new certification allows for worldwide distribution and follows globally accepted engineering standards, which ensures integrity, quality and durability in production and performance. 304L or 316L stainless steel filter housings provide maximum durability, and are available in a variety of sizes, construction materials, gaskets, or with custom features. The Housings have swing bolt closures for easy cartridge change-outs and secure sealing and holds four (4) to fifty-two (52) cartridges to serve a wide range of flow rates. Shelco’s heavy-duty ASME Code cartridge housings are designed for commercial and industrial filter applications.
The housings have heavy duty swing bolt closure and davit assembly to ensure easy operation and maintenance, and holds one (1) through six (6) #2 size bags to service a wide range of flow rates.
- Heavy duty carbon steel 304L or 316L Stainless Steel Construction for maximum durability
- Optional 134 epoxy coating for seawater or corrosive applications
- Swing bolt closure and dait assembly for easy operation and maintenance
- Available in 2”, 3”, 4”, and 6” connection sizes
- Water
- Chemicals
- Food & Beverage
- Electronics
- Oil
- Inks / Paints / Coatings
- Coolants
- Pulp & Paper
Maximum Operating Pressure
- 150 psig (10.3 bar) @ 300°F (149°C)
Connections
- Inlet /Outlet:
- 2" Flanges (USB)
- 3" Flanges (2USB)
- 4" Flanges (3USB, 4USB)
- 6" Flanges (5USB, 6USB)
- Drain Port:
- 1/2" FNPT (USB)
- 3/4" FNPT (2USB-6USB)
- Vent Port: 1/2" FNPT
- Gauge Ports: 1/4" FNPT
Materials of Construction
- Head / Shell: Carbon Steel, 304L or 316L Stainless Steel
- Eye Nuts and Davit Handle: Zinc Plated Steel
- Mounting Legs: Carbon Steel or 304L Stainless Steel
Gaskets
- Buna N
- Optional: EPR, Silicone, Teflon Encapsulated Silicone, Viton
Baskets
- 1/8" perforated Stainless Steel
- Optional: Various perforation and mesh sizes
Finish
- Glass Bead
- Optional: electro-polish, passivate or 134 epoxy coating
