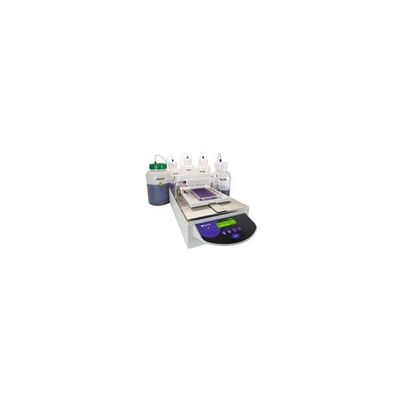

Biochrom - Asys Atlantis Microplate Washer
The Biochrom Asys Atlantis microplate washer for standard ANSI SBS footprint 96-well plates with flexiblility in washing options, simple operation and digitally controlled aspiration and dispensing pumps. The Biochrom Asys Atlantis is the perfect choice to compliment any microplate reader in any applications environment.
- Configurable to many different well formats for maximum flexibility
- Optional 16-way manifold for washing 384-well plates
- Detachable plate carrier for easy cleaning
- Low noise, pressure-free aspiration and dispensing pumps
- Auto rinse function prevents liquid path clogging
- Reduces aerosols due to cover and pumping technology
- Optional liquid level sensors
Manifolds: 8 way manifold
Liquid Channels: 2 or 4
Plate Types: 96 and 384 well
Dispensed Volumes:
Dispensing Precision (across the plate):
Dispensing: Pressure free
Parameters: Programmable dispensing, aspirating and shaking
Method Storage: On-board 20 cycles and 50 procedures
Shaking: 3 speed
Display: LCD
Data Interface: n/a
Languages: English, German
Power Requirement: 100-240V AC, 50/60Hz, 150VA
Dimensions (WxDxH): 28 x 22 x 42cm (11 x 8.7 x 16.5 inches)
Weight: 6.2 Kg (13.7lbs)
