ATLANTA - High-Precision Hardened & Ground Racks

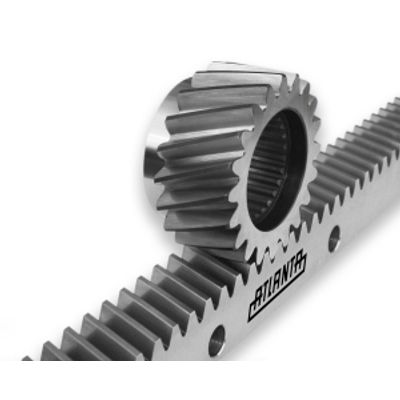

ATLANTA's Ultra-High Precision DIN 3 and 5 Racks are designed to meet high accuracy application demands. These racks are manufactured with precision control, offering four precision levels from DIN 3 to 7 and AGMA 11 to 12+, with pitch accuracies up to 0.012 mm per 1,000 mm. Available in straight and helical versions and modules ranging from 1.5 to 12.0, they can be provided in lengths up to two meters. These racks ensure minimal pitch error across complete travel lengths, removing the need for electronic compensation in certain applications. The precision pitch and parallelism result in drives with extremely low backlash without preloading. By pairing with ATLANTA's Split-Pinions, ultra-precise zero-backlash axis drives are achievable. ATLANTA's continuous improvement has reduced total pitch errors, particularly over long racks up to 2,000 mm. Using a Rack Assembly Kit ensures accurate pitch across rack segments, enhancing precision over extensive axes.
ATLANTA has expanded their wide range of racks to include Ultra-High Precision DIN 3 and 5 racks, which are precision manufactured in a controlled environment.
Four levels of precision are now available (DIN 3 through 7, AGMA 11 to 12+), with pitch accuracies down to 0.012 mm per 1,000 mm length. This gives the machine designer the flexibility of choosing the desired level of rack precision to meet the application needs.
These racks are available in straight (spur) and helical versions, in modules 1.5 through 12.0, in lengths up to two meter long. These racks are ideal for high accuracy applications requiring minimal pitch error over the complete travel length.
The high precision pitch of the racks can eliminate the need for electronic compensation and the high precision parallelism allows for drives with extremely low backlash without the need for preloading. Used with our Split-Pinions, ultra-precise zero-backlash axis drives can be achieved.
Advantages of Using Long Racks: Through continuous improvements in production techniques, ATLANTA has been able to reduce the total pitch error for the 1,000 mm long hardened & ground racks, while achieving significant reductions of the total pitch error of 1,500 mm and 2,000 mm long hardened & ground racks.
