Atlas Incinerators ApS

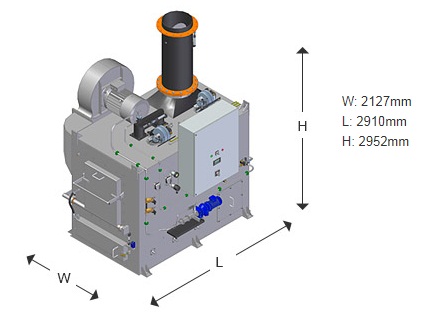

Atlas - Model 2400 SL M -Largest Incinerator for Burning Solid and Liquid Waste
The 2400 SL M is the largest incinerator for burning solid and liquid waste with a high water content, (above 50%), suitable for the biggest merchant vessels, and where no waste sluice is required.
Most popular related searches
liquid waste
solid waste
flue gas fan
solid waste incineration
sludge oil
oil sludge
settling tank
flue gas
oil sludge waste
oil waste
- Combustion Capacity (kW) : 2400
- Combustion Capacity (kcal/h) : 2.000.000
- Combustion Capacity Solid Waste (IMO waste specification) : 500 L/charge
- Combustion Capacity Liquid Waste (IMO standard is 20% water content) :
- 200 l/h at 0% water content
- 270 l/h at 20% water content
- 400 l/h at 50% water content
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
