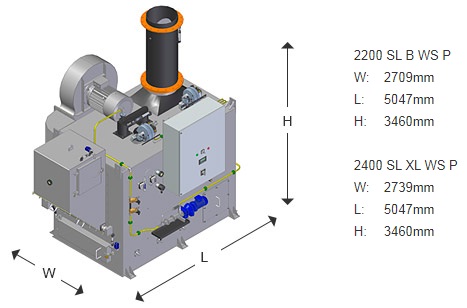

Atlas - Model 2400 SL WS P -Largest Incinerator for Burning Solid and Liquid Waste
The 2400 SL (B/XL) WS P is the largest incinerator for burning solid and liquid waste, available with a 30L, 70L or 120L (waste bag) sluice size, and suitable for the biggest merchant vessels.
Most popular related searches
liquid waste
solid waste
flue gas fan
solid waste incineration
sludge oil
oil sludge
settling tank
waste bag
flue gas
oil sludge waste
- Combustion Capacity (kW) : 2400
- Combustion Capacity (kcal/h) : 2.000.000
- Combustion Capacity Solid Waste (IMO waste specification) : 230 kg/h max. 920 kg/24 hours
- Combustion Capacity Liquid Waste (IMO standard is 20% water content) :
- 200 l/h at 0% water content
- 270 l/h at 20% water content
- 400 l/h at 50% water content
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
