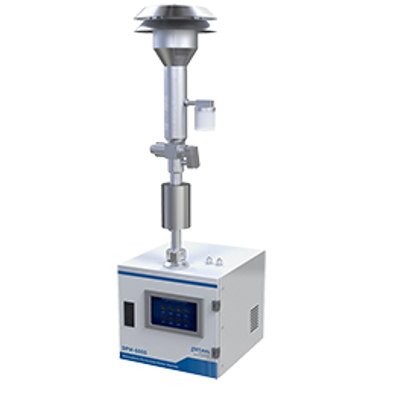

Zetian - Model DPM-6000 -Atmospheric Particulate Matter Monitor

FromHangzhou Chunlai Technology CO., Ltd.

SHARE

The DPM-6000 Atmospheric Particulate Matter Monitor is used to measure the concentration of PM10 or PM2.5 in the air based on β-ray Attenuation Method. The analyzer automatically monitors PM10 by means of a PM10 sampling head while monitors smaller particulate matter with a PM2.5 sampling port, and it can also be set to monitor total suspended particulate matter (TSP). It can be used as stationary equipment or portable device on vehicle.

Most popular related searches

particulate monitoring

particulate matter

atmospheric particulate

air quality monitoring

PM10 sampling head

industry air quality

suspended particulate matter

ambient particulate monitoring

total suspended particulate

ambient particulate

Pre-calibration, auto zeroing, auto fault diagnosis function, greatly reduce maintenance work
PM10 and PM2.5 cutters can be selected to monitor particulate matter of different sizes
RS232, RS485, USB, GPRS, Ethernet and other transmission modes can be used to realize real-time remote monitoring and data transmission
Touch LCD is equipped to facilitate on-site operation on mobile platforms like vehicle monitoring station
Sealed radiation source is below 100μCi, without radiation safety concerns

It can be widely applied to industrial polluted areas, residential areas, cities and other air quality monitoring sites.

Measuring method: β-ray Attenuation Method
Monitoring object: PM10/PM2.5
Measuring range: 0~10mg/m3 (customizable)
Detection limit: 10μg/m3
Sampling velocity: 16.7L/min
Sampling time: 5min~1000min, settable
Flow error: ≤2%F.S.
Replacement period of filter membrane: 2 months
Working temperature: 0~40℃
