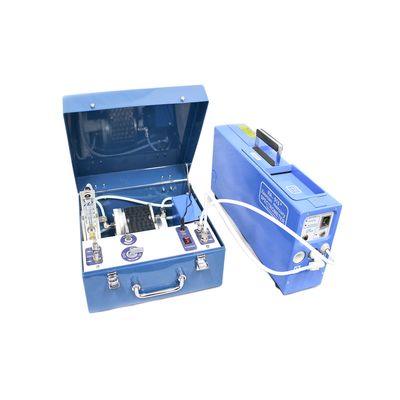

Ohio Lumex - Model RP-91 NG -Attachment for Natural Gas Samples

This system is designed for mercury detemination in natural gas. The RP-91NG attachment for the RA-915M mercury takes a natural gas sample into the analytical cell of the analyzer. The system is intended for use in technological process controls, environmental and scientific research.

• Allows for direct interference-free determination of mercury concentration in natural gas
• Wide dynamic range of analysis
• No sample preparation
• Portability
• Robust and low maintenance
• Direct determination of mercury without preliminary accumulation on a gold sorbent

• Power Supply: 100-240 VAC, 50/60 Hz
• Power consumption: 35 W
• Nonstop operation time: 8 hours
• Size of the attachment unit, mm: 320*290*160
• Weight, kg/lbs: 6.5/14.3
• Gas flow rate, l/min: From 2.5 to 5.0

Operating conditions

• Ambient air temperature - 1 - 40 C
• Atmospheric pressure - 84.0 - 106.7 kPa
• Relative humidity - lower than 95% at 35 C

1. RA-915M mercury analyzer;
2. RP-91NG attachment;
3. RA-915M software.

Warranty

• Equipment is covered by a 12-months warranty.
