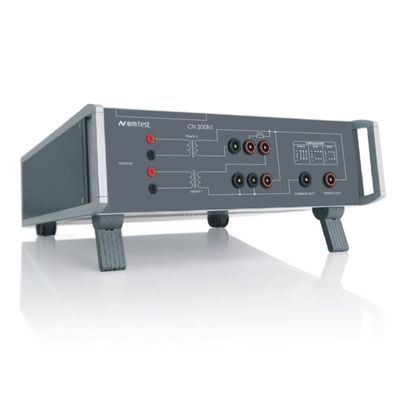

AMETEK EM Test - Model CN 200N1 -Audio Transformer
The CN 200N1 is a standalone coupling network unifying two audio transformers being individually configurable for various test requirements (e.g. Ford FMC1278 and SAE J1113-2). The CN 200N1 is used to apply the test signals to the lines under test via an audio transformer to perform ripple voltage tests and continuous or transient conducted immunity tests.
Most popular related searches
- Frequency response 10 Hz to 250 kHz
- Secondary saturation up to 50 A
- Audio power 2 x 200 W
- Turns ratio 2:1 step down
- Freely configurable on primary/secondary; serial, parallel, single
- Built-in non-inductive load resistor 0.5 ohm, 250 W
Automotive Standards
SAE J1113-2 ISO 11452-10
Automotive OEM Specifications
Ford EMC-CS-2009.1 Mazda MES PW 67602 Ford FMC 1278 Jaguar JLR-EMC-CS Mitsubishi ES-X82115 Tesla TS-0000425-05
