  4. Metrohm - Model Autolab PGSTAT101 - ...

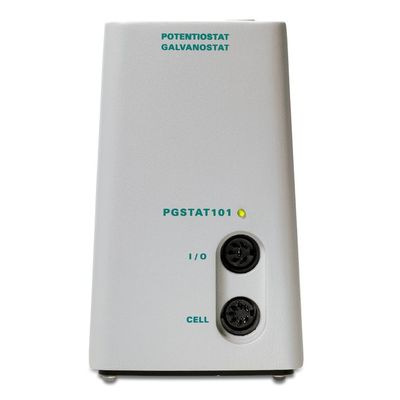

MetrohmModel Autolab PGSTAT101 -Autolab Range of Electrochemical Instruments

SHARE

The entry level in the Autolab range of electrochemical instruments, the Autolab/PGSTAT101 in combination with the powerful NOVA software, can be used for most of the standard electrochemical techniques. Autolab/PGSTAT101 is an affordable potentiostat/galvanostat without compromising on quality and specifications, making it an ideal instrument for students and educational purposes. The small footprint allows you to place a high quality potentiostat/galvanostat on a crowded workbench. Analog and digital inputs and outputs for interfacing and controlling external devices are available. The Autolab/PGSTAT101 comes with an internal dummy cell and a built-in analog integrator.

Most popular related searches
  • Analog integrator: true
  • Compliance voltage range in volt: 10
  • Current resolution: 0.0003 % of current range
  • Dimensions in mm (W/H/D): 90/150/210
  • Dimensions remark: without cables
  • Input impedance in Ohm: 100 G
  • Maximum bandwidth in Hz: 1 M
  • Maximum current in ampère: 0.1
  • Maximum number of modules: 0
  • Modular instrument: false
  • Multichannel instrument: false
  • Number of current ranges: 7.0
  • Number of current ranges remarks: 10 nA to 10 mA
  • Potential and current accuracy: 0.2 % and 0.2 % of current range
  • Potential range in volt: 10
  • Potential resolution: 3 µV (gain 100)
  • Weight of the instrument in kg: 2.1
