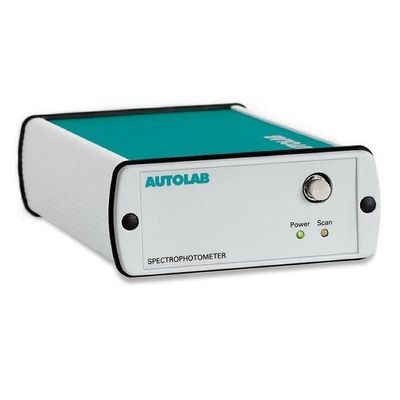

Metrohm - Model AUT.SPECT.UA.S -Autolab Spectrophotometer UA
FromMetrohm AG
The Autolab Spectrophotometer UA is a compact device for applications in the UV/VIS/NIR wavelenght range (from 200 nm to 1100 nm). This instrument is designed to work in combination with all Autolab potentiostat/galvanostat instruments and is supported by the NOVA software.The spectrophotometer can be manually controlled or can be synchronized with electrochemical measurements. This ensures accurate timing during the measurements and allows a direct correlation between the electrochemical and spectroscopic data.
Most popular related searches
fiber optic connector
UV-VIS/NIR
spectrophotometer
potentiostat galvanostat
galvanostat instrument
electrochemistry measurement
VIS-NIR
spectroscopy data
potentiostat/galvanostat
UV-VIS
- Wavelength range: 200 nm - 1100 nm
- Resolution: 2.5 nm
- Stray light: 0.22 %
- Sensitivity: 310000 counts/μW per ms integration time
- Fiber optic connector: SMA-905
- Detector: CCD linear array, 2048 pixels
- Maximum number of scans: 1013 scans of 2048 pixels
- A/D converter: 16 bit, 2 MHz
- Integration time: 1.05 ms - 600 s
- Power requirements: 12 V DC / 350 mA
- Dimensions: 175 mm x 110 mm x 44 mm
