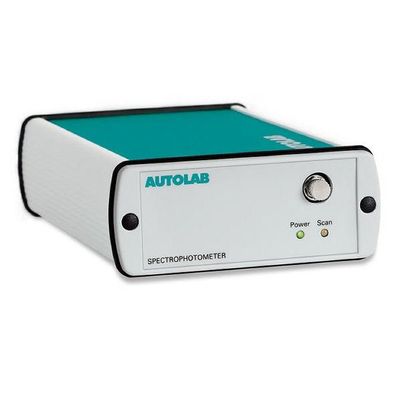

MetrohmModel AUT.SPECT.UB.S -Autolab Spectrophotometer UB

SHARE

The Autolab Spectrophotometer UB is a compact device for applications in the UV/VIS wavelenght range (from 200 nm to 850 nm). This instrument is designed to work in combination with all Autolab potentiostat/galvanostat instruments and is supported by the NOVA software. The spectrophotometer can be manually controlled or can be synchronized with electrochemical measurements. This ensures accurate timing during the measurements and allows a direct correlation between the electrochemical and spectroscopic data.

Most popular related searches
  • Wavelength range: 200 nm - 850 nm
  • Resolution: 1.15 nm
  • Stray light: 0.15 %
  • Sensitivity: 310,000 counts/μW per ms integration time
  • Fiber optic connector: SMA-905
  • Detector: CCD linear array, 2048 pixels
  • Maximum number of scans: 1013 scans of 2048 pixels
  • A/D converter: 16 bit, 2 MHz
  • Integration time: 1.05 ms - 600 s
  • Power requirements: 12 V DC / 350 mA
  • Dimensions: 175 mm x 110 mm x 44 mm
