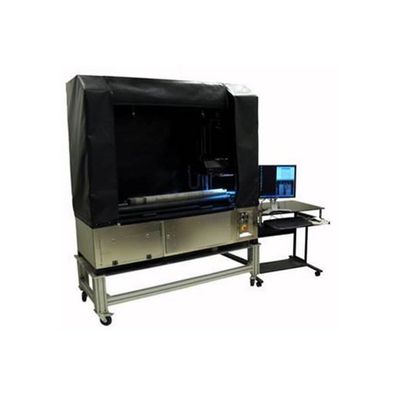

Stratum Reservoir - Model Corimag 360 -Automated Core Photo Scanner

Scanner for continuous digital image log on both slabbed core and whole core.

Compact and portable unit that canbe used in a room, without the need to turn off the light.
Automated and easy to operateand it records both U.V.light and white light photos in a single scan.
High resolution up to 29 Mega Pixel.
Output directly 3 different files w.r.t. resolution: 1:1 (High) 1:4 (Medium) 1:16 (Low).
Operator can chose 4 different full resolutions at start of the recording, whereof the largest is 36,000 pixels per meter core.
There are several other models of Corimag core scanners available, depending on your needs.
Corimag core images are detected and indexed automatically when using them with the Corimag Vision software, just one click and the entire core string will be displayed on your monitor.

Corimag Vision; core photo software for display of all types of Corimag core photos.
FEW Info; Software that can add information in file header so that non Corimag core photos can be used in Corimag Vision the same way as original Corimag photos.
Spare illumination tubes and bulbs, U.V. and white light.

Advantages
